| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Output | |
| Width |

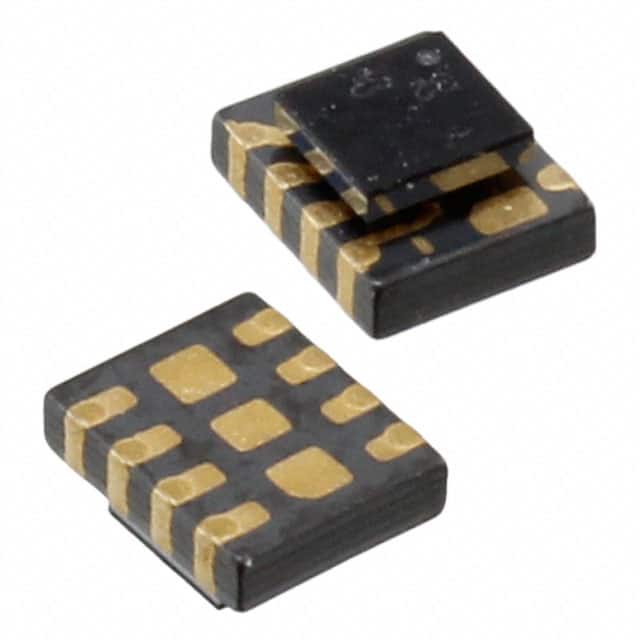

The LMZ10501SILT is a high-efficiency, non-isolated Point-of-Load (PoL) module DC-DC converter from Texas Instruments, designed for space-constrained commercial ITE applications. This surface-mount device integrates the power stage and control circuitry into a compact 8-uSIP package measuring just 3.0mm x 2.6mm x 1.5mm.
Key electrical characteristics include a single output capable of delivering up to 1A over a programmable voltage range of 0.6V to 3.6V. The module achieves up to 95% efficiency, minimizing power loss in tight thermal environments. Input voltage minimum is 2.7V. Protection features include overcurrent (OCP), overtemperature (OTP), short-circuit (SCP), and undervoltage lockout (UVLO). Control is via an active-high enable input.
The 8-LDFN exposed pad module package provides excellent thermal performance and is suitable for automated surface-mount assembly. The device operates over a junction temperature range of -40°C to +125°C, making it suitable for a variety of commercial and industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.28 | $5.28 |
| 5+ | $5.16 | $5.16 |
| 10+ | $5.03 | $5.03 |
| 25+ | $4.89 | $4.89 |
| 50+ | $4.79 | $4.79 |
| 100+ | $4.71 | $4.71 |
| 250+ | $3.91 | $3.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is programmable from 0.6V to 3.6V.
The maximum output current is 1A.
The operating temperature range is -40°C to 125°C.
The efficiency is up to 95%.
The package is an 8-LDFN Exposed Pad, Module (also known as 8-uSIP).
The module includes overcurrent (OCP), overtemperature (OTP), short-circuit (SCP), and undervoltage lockout (UVLO) protection.
It is listed as RoHS3 Compliant with REACH unaffected, though these statuses are unverified.
