| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Pin1 Quadrant | |
| Pins | |
| Power | |
| Protocol | |
| RF Family | |
| Reel Diameter | |
| Reel Width | |
| SPQ | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The Texas Instruments LMX9830SMX/NOPB is an RF transceiver integrated circuit designed for Bluetooth applications. It combines RF transmission and reception capabilities with a microcontroller unit (MCU), enabling wireless communication in compact systems. Operating at 2.4GHz with Bluetooth v2.0 protocol, it supports data rates up to 704kbps and features receiver sensitivity of -80dBm. The device includes 16kB of RAM and supports serial interfaces such as JTAG, SPI, and UART for flexible integration.

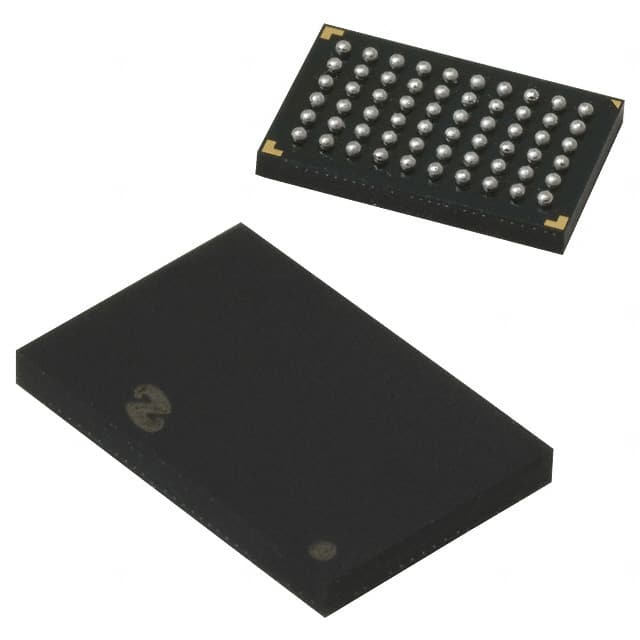

The package is a 60-LFBGA (6x9mm), surface-mount type, suitable for automated assembly processes. It is compliant with RoHS standards and is supplied in a tape and reel format with a standard quantity of 2500 units. The device's operating temperature range spans from -40°C to 125°C, making it suitable for various industrial and consumer applications.
Designed for use in wireless modules, IoT devices, and Bluetooth-enabled systems, this IC provides a compact, reliable solution for Bluetooth communication needs. Its package and mounting type facilitate easy integration into PCB designs, supporting high-volume manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $710.26 | $710.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5V to 3.6V.
It uses a 60-LFBGA package.
The operating temperature range is from -40°C to 125°C.
