| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 03+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Output Type | |
| Slew Rate | |
| Supply Current |
The LMV821M7X-NS is a general-purpose operational amplifier manufactured by National Semiconductor. This single-circuit amplifier is designed for a wide range of applications, offering a Rail-to-Rail output for maximum dynamic range.
Key electrical characteristics include a Gain Bandwidth Product of 5.6 MHz and a Slew Rate of 2V/µs. The device requires a supply voltage between 2.5V and 5.5V, with a low supply current of 300µA. Input bias current is rated at 40 nA, and the input offset voltage is 1 mV.

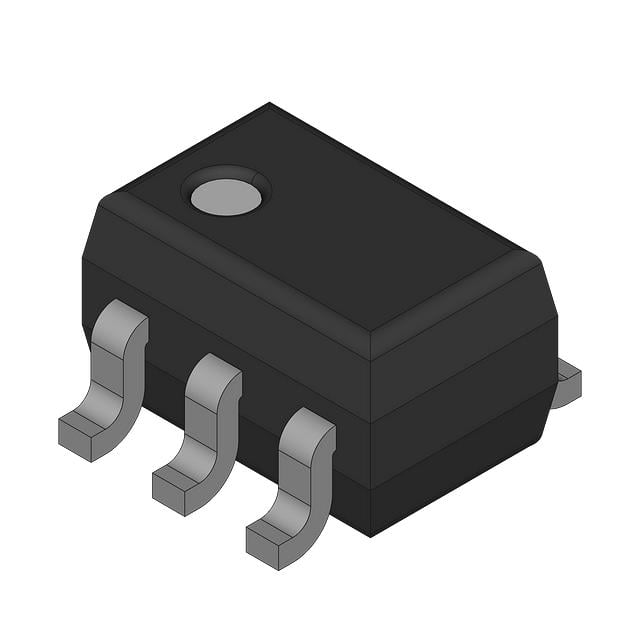

This operational amplifier is housed in a compact SC-70-5 surface-mount package, making it suitable for space-constrained designs. The operating temperature range is from -40°C to 85°C.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status.
SC-70-5 surface mount package.
-40°C to +85°C.
2.5V to 5.5V.
5.6 MHz.
Yes, it features rail-to-rail output.
2 V/µs.
45 mA.
