| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
65,280 pcs
|
65280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Mounting Type | |
| Number of Channels | |
| Number of Elements | |
| Output Type | |
| Propagation Delay (Max) | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The LMV393MUTAG from ON Semiconductor is a dual-channel, general-purpose, low-voltage comparator designed for applications requiring space-saving and low power consumption. It is specified for operation from 2.7V to 5V, making it suitable for battery-powered portable devices.
Key electrical characteristics include a typical quiescent current of 250µA per channel and a maximum propagation delay of 1.5µs. The comparator features an open-drain output, which allows for wired-OR configurations. The input common-mode voltage range extends to ground, and it offers a low saturation voltage.

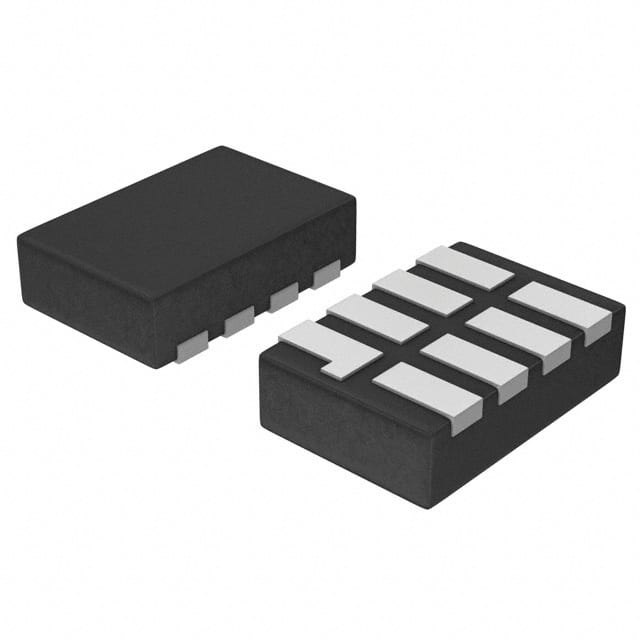

This device is available in an 8-UDFN surface-mount package, ideal for compact designs. It operates within a temperature range of -40°C to 85°C. The LMV393MUTAG is RoHS 3 compliant, Pb-Free, and Halogen Free.
Typical applications include battery monitors, notebooks, PDAs, and other general-purpose low-voltage applications where efficient power usage and small footprint are critical.
The LMV393MUTAG operates from 2.7V to 5V.
The LMV393MUTAG features an open drain output.
The typical supply current is 250µA per channel.
The maximum operating temperature is 85°C.
The LMV393MUTAG is supplied in an 8-UDFN package.
Yes, the LMV393MUTAG is RoHS 3 compliant.
