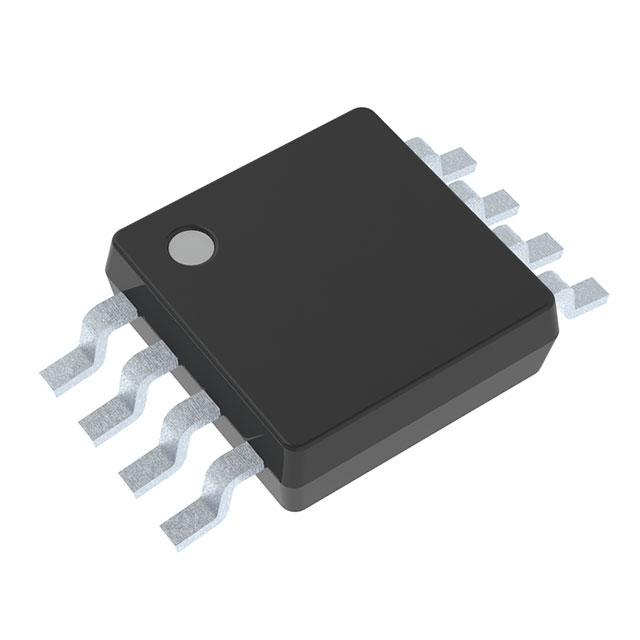

The LMV358IDGK6 from Texas Instruments is a general-purpose operational amplifier featuring two circuits in an 8-VSSOP package. This device is designed for applications requiring a rail-to-rail output stage, providing flexibility in signal conditioning.
Key electrical characteristics include a gain bandwidth product of 1 MHz and a slew rate of 1 V/µs. The amplifier operates with a supply voltage span from 2.7V to 5.5V, drawing a typical supply current of 210µA per channel. It also features a low input bias current of 15 nA and an input offset voltage of 1.7 mV.
The LMV358IDGK6 is suitable for various electronic designs. Its surface-mount package and operating temperature range of -40°C to 125°C make it adaptable to different environmental conditions. The device's specifications make it a versatile choice for signal amplification tasks in embedded systems and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 2.7V to 5.5V.
It is available in an 8-VSSOP surface-mount package.
The operating temperature range is -40°C to 125°C.
It contains 2 operational amplifier circuits.
The gain bandwidth product is 1 MHz typical.
The output type is rail-to-rail.
The typical slew rate is 1 V/µs.
