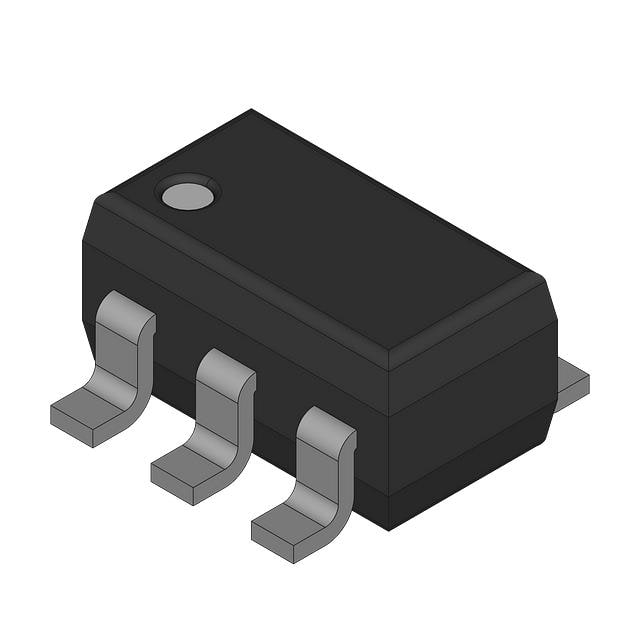

LMV331M5X The LMV331M5X is a single general purpose comparator from Texas Instruments, designed for low-voltage applications. It is available in a space-saving SOT-23-5 package.
Mfr Part #:

LMV331M5X

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The LMV331M5X is a single general purpose comparator from Texas Instruments, designed for low-voltage applications. It is available in a space-saving SOT-23-5 package.
✓ Total Stock: 1,597 pcs

LMV331M5X Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
597 pcs
On Request
597 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LMV331M5X Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Elements
Operating Temperature
Output Type
Propagation Delay (Max)
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

LMV331M5X Description

Short technical summary and product information.

The Texas Instruments LMV331M5X is a single, general-purpose comparator designed for low-voltage (2.7V to 5V) operation. It is part of the LMV33x-N / LMV393-N family, offering a cost-effective solution for portable consumer products where space, low voltage, and low power are critical.



Key electrical characteristics include a low supply current of 60 µA per channel, an input common-mode voltage range that includes ground, and a low output saturation voltage of 200 mV. The propagation delay is specified at 200 ns. The device operates within an industrial temperature range of -40°C to 85°C.



This comparator is housed in a space-saving 5-pin SOT-23 package, making it suitable for designs with limited PCB real estate. The LMV331M5X is built using TI's advanced Submicron Silicon-Gate BiCMOS process and features bipolar inputs and outputs.



It is well-suited for various applications requiring precise voltage level detection and comparison in battery-powered and portable devices.

LMV331M5X Quick Information

Product Type: Comparator
Canonical Name: LMV331M5X Single General Purpose Comparator
Subcategory: General Purpose

LMV331M5X Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMV331M5X Features

  • Single general purpose comparator IC.
  • Low voltage operation from 2.7V to 5V.
  • Industrial temperature range: -40°C to 85°C.
  • Space-saving 5-pin SOT-23 package.
  • Low supply current of 60 µA/channel.

LMV331M5X Applications

  • Ideal for portable consumer products.
  • Suitable for low-power applications.
  • Used in battery-operated devices.
  • Enables voltage level detection.

LMV331M5X FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the LMV331M5X?

The LMV331M5X operates from -40°C to 85°C.

What package type is the LMV331M5X available in?

The LMV331M5X is available in SOT-23-5 and SC70 packages.

What is the propagation delay of the LMV331M5X?

The propagation delay is 200 ns.

What is the supply current for the LMV331M5X?

The supply current is 120 µA.

Does the LMV331M5X support input common mode voltage that includes ground?

Yes, the input common mode voltage range includes ground.
