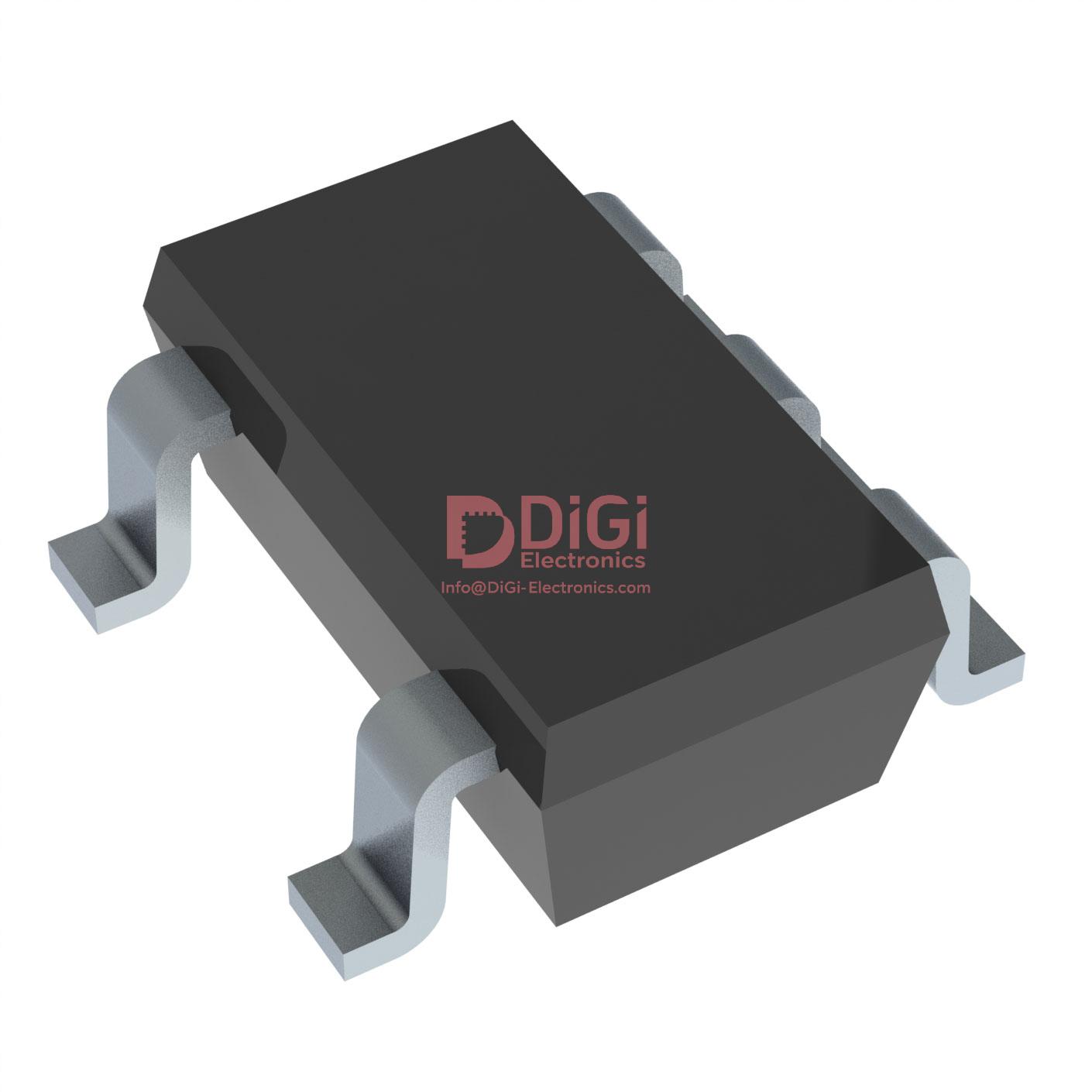

LMV321M5X/NOPB The Texas Instruments LMV321M5X/NOPB is a general-purpose operational amplifier with a single circuit. It features a rail-to-rail output and operates within a supply voltage range of 2.7V to 5.5V.
Mfr Part #:

LMV321M5X/NOPB

Available from 7 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LMV321M5X/NOPB is a general-purpose operational amplifier with a single circuit. It features a rail-to-rail output and operates within a supply voltage range of 2.7V to 5.5V.
✓ Total Stock: 157,354 pcs
$ Price Range: $0.99

LMV321M5X/NOPB Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LMV321M5X/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Conflict Minerals
Halogen Free
Mounting Type
Number of Circuits
Operating Temperature
Output Type
SVHC Present
Slew Rate
View Similar Products (0)

LMV321M5X/NOPB Description

Short technical summary and product information.

The LMV321M5X/NOPB from Texas Instruments is a versatile general-purpose operational amplifier designed for a wide range of applications. This device features a single circuit configuration and offers a rail-to-rail output, enhancing its usability in various signal conditioning tasks.



Key electrical specifications include a low supply current of 130µA and a gain bandwidth product of 1 MHz. The amplifier has a slew rate of 1V/µs and a low input bias current of 15 nA, with an input offset voltage of 1.7 mV. It operates effectively within a supply voltage span from 2.7V to 5.5V.



Packaged in a compact SOT-23-5 surface-mount package, the LMV321M5X/NOPB is suitable for designs where space is a constraint. The operating temperature range is from -40°C to 85°C, making it robust for various environmental conditions. This component is ideal for general-purpose amplification needs in electronic circuits.

LMV321M5X/NOPB Quick Information

Product Type: Operational Amplifier
Series: LMV321
Canonical Name: LMV321M5X/NOPB General Purpose Amplifier
Subcategory: Comparators

LMV321M5X/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

LMV321M5X/NOPB Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMV321M5X/NOPB Features

  • General purpose amplifier with one circuit.
  • Features rail-to-rail output capability.
  • Operates from 2.7V to 5.5V supply.
  • Compact SOT-23-5 surface mount package.
  • Wide operating temperature range.

LMV321M5X/NOPB Applications

  • Suitable for general signal amplification.
  • Ideal for low-power electronic circuits.
  • Used in space-constrained designs.
  • Applicable in various temperature environments.

LMV321M5X/NOPB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the LMV321M5X/NOPB?

2.7V to 5.5V.

What package is the LMV321M5X/NOPB available in?

SOT-23-5 surface mount package.

What is the operating temperature range?

-40°C to 85°C.

What is the gain bandwidth product?

1 MHz.

What is the slew rate?

1 V/µs.

What is the output type?

Rail-to-Rail.

How many amplifiers are in the LMV321M5X/NOPB?

1 circuit.
