| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
142 pcs
|
142 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Current Consumption | |
| Dynamic Range | |
| Frequency | |
| Input Range | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature Range | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The Texas Instruments LMV232TL/NOPB is a dual-channel integrated mean square power detector designed for RF transmit power measurement in mobile phones. This IC is particularly suited for accurate power measurement of RF signals with high peak-to-average ratios, commonly found in 3G and UMTS/CDMA applications.
Key electrical specifications include an operating frequency range from 50 MHz to 2 GHz, a typical dynamic range of 24 dB, and an accuracy of ±1 dB. It operates with a single supply voltage between 2.5V and 3.3V, consuming a typical current of 9.8 mA. The device features two sequentially selectable RF inputs and an input range of -11 dBm to 13 dBm.

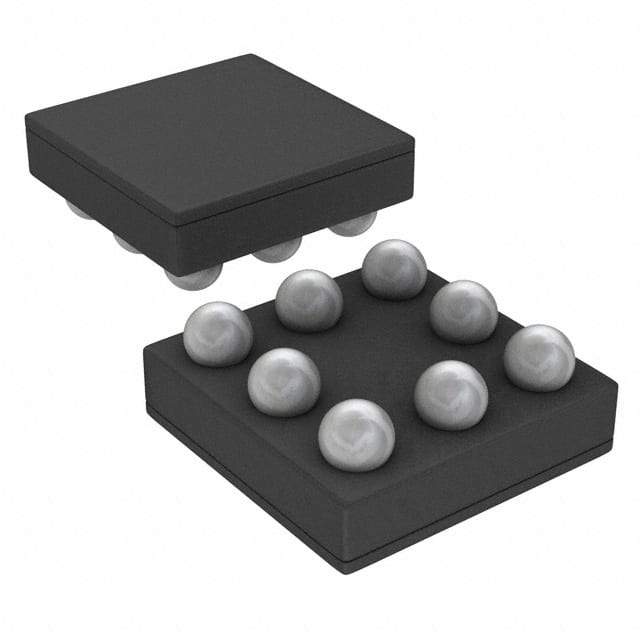

Designed for surface mount, the LMV232TL/NOPB comes in an 8-DSBGA package measuring 1.56x1.56 mm. It offers features such as low power consumption with a shutdown mode and externally configurable gain and LF filter bandwidth. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This RF detector is ideal for applications requiring precise power monitoring in wireless communication systems, contributing to calibration savings and system certification.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 50 MHz to 2 GHz.
The typical dynamic range is 24 dB.
The typical current consumption is 9.8 mA.
It has 2 channels.
The operating temperature range is -40°C to 85°C.
The operating voltage is between 2.5 V and 3.3 V.
It is supplied in an 8-DSBGA package.
