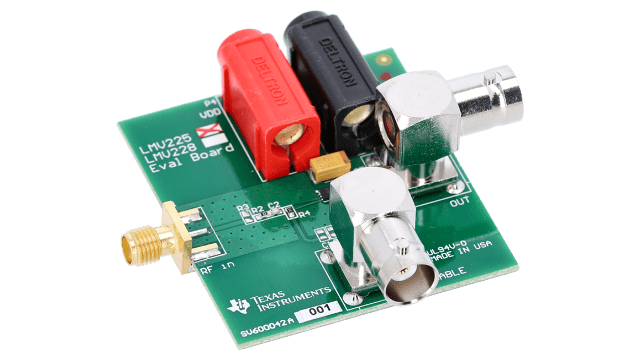

The LMV225 from Texas Instruments is a logarithmic RF power detector suitable for CDMA and WCDMA applications. It covers a wide frequency range from 450 MHz to 2000 MHz, offering a typical dynamic range of 30 dB. This device provides an accurate, temperature and supply compensated output voltage that is linearly related to the RF input power in dBm.
The LMV225 features a power detection range from -30 dBm to 0 dBm, making it ideal for direct use with resistive taps. It operates with a single supply voltage between 2.7V and 5.5V and has a low current consumption of 4.8 mA. The operating temperature range is from -40°C to 85°C.
Available in compact WSON and DSBGA packages, the LMV225 is designed for surface mount applications. Its output voltage ranges from 0.2V to 2V, which can be scaled to meet ADC input requirements. The device is active when enabled and enters a low-power shutdown mode otherwise.
The LMV225 operates from 450 MHz to 2000 MHz.
The typical dynamic range of the LMV225 is 30 dB.
The typical current consumption for the LMV225 is 4.8 mA.
The LMV225 can operate in temperatures ranging from -40°C to 85°C.
The LMV225 has a power detection range from -30 dBm to 0 dBm.
The output voltage range for the LMV225 is 0.2 V to 2 V.
The LMV225 operates with a single supply voltage from 2.7 V to 5.5 V.
