| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,267 pcs
|
60267 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,340 pcs
|
2340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| ESD Classification (CDM) | |
| ESD Classification - HBM | |
| Interface Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Package Description | |
| Resolution | |
| Sensing Temperature | |
| Sensor Gain | |
| Sensor Type | |
| Supplier Device Package | |
| Supply Current (Maximum) | |
| Test Condition | |
| Voltage |
The LMT84QDCKRQ1 from Texas Instruments is a precision CMOS analog temperature sensor designed for a wide operating temperature range of -50°C to 150°C. It features a linear analog output voltage that is inversely proportional to temperature.
Key specifications include a typical accuracy of ±0.4°C and a maximum accuracy of ±2.7°C over the full operating range. The sensor operates with a supply voltage of 1.5V to 5.5V and consumes a low quiescent current of 5.4µA. The output provides a sensor gain of -5.5mV/°C.

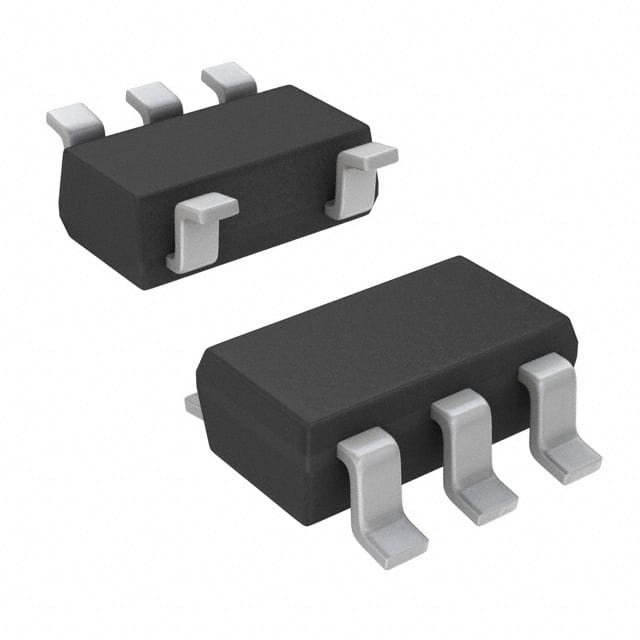

This device is housed in a compact SC-70 package, suitable for surface mount applications. It is AEC-Q100 Grade 0 qualified, making it suitable for automotive applications such as infotainment, cluster, and powertrain systems. The sensor is also footprint compatible with industry-standard temperature sensors like the LM20/19 and LM35.
The LMT84QDCKRQ1 offers features like short-circuit protection and a push-pull output with ±50µA drive capability. Its low power consumption and fast power-on time make it effective for battery-powered applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to 150°C
1.5V to 5.5V
Maximum ±2.7°C, typical ±0.4°C
SC-70 (SOT-SC70)
