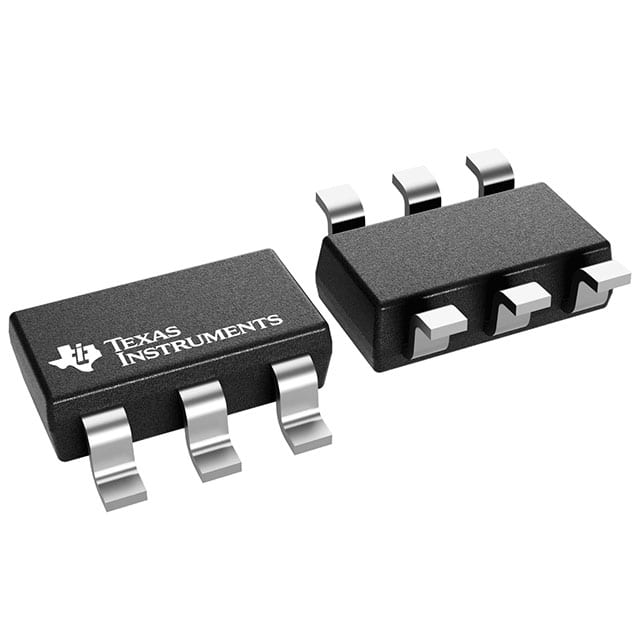

LMR51420XDDCR The Texas Instruments LMR51420XDDCR is a 2A synchronous buck converter with a wide 4.5V to 36V input range. It is designed for industrial applications and comes in a compact SOT-23 package.
Mfr Part #:

LMR51420XDDCR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LMR51420XDDCR is a 2A synchronous buck converter with a wide 4.5V to 36V input range. It is designed for industrial applications and comes in a compact SOT-23 package.
✓ Total Stock: 1,450 pcs
$ Price Range: $0.20

LMR51420XDDCR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
1,400 pcs
1400 pcs On Request 1 On Request On Request 24+ On Request On Request
Non-Authorised Inventory information
50 pcs
50 pcs On Request 1 On Request On Request On Request On Request On Request

LMR51420XDDCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Duty Cycle
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage

LMR51420XDDCR Description

Short technical summary and product information.

The LMR51420XDDCR from Texas Instruments is a versatile SIMPLE SWITCHER® power converter. This synchronous buck converter is capable of delivering up to 2A of continuous output current and operates with an input voltage range from 4.5V to 36V, making it suitable for a variety of industrial power conditioning applications.



Key electrical specifications include a maximum duty cycle of 98% and fixed switching frequency options of 500kHz or 1.1MHz. The device features internal compensation and soft-start circuits, minimizing the need for external components. Protection features such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown are integrated for reliability.



Designed for ease of use and small solution size, the LMR51420XDDCR is housed in a 6-pin SOT-23-THIN package. Its pin-to-pin compatibility with other TI devices like the TPS54202 and TPS54302 can simplify design migration. The converter offers both PFM and forced PWM (FPWM) modes, allowing for high efficiency at light loads or constant frequency operation with small output voltage ripple.



This device is configured for rugged industrial applications and is functional safety-capable, with documentation available to aid in system design. It is well-suited for appliances, building automation, motor drives, and general-purpose wide VIN power supplies.

LMR51420XDDCR Quick Information

Product Type: DC DC Switching Regulator
Series: SIMPLE SWITCHER
Canonical Name: LMR51420 SIMPLE SWITCHER® Power Converter, 4.5-V to 36-V, 2-A, Synchronous Buck Converter
Subcategory: Buck Converter

LMR51420XDDCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMR51420XDDCR Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMR51420XDDCR Features

  • Wide 4.5V to 36V input voltage range.
  • 2A continuous output current capability.
  • Synchronous buck converter topology.
  • Compact SOT-23-THIN package.
  • Functional safety-capable documentation available.

LMR51420XDDCR Applications

  • Suitable for industrial applications.
  • Used in building automation systems.
  • Applicable for motor drive control.
  • General purpose power supplies.

LMR51420XDDCR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the LMR51420XDDCR?

The input voltage range is 4.5 V to 36 V.

What is the maximum output current of the LMR51420XDDCR?

The LMR51420XDDCR can provide a continuous output current of up to 2 A.

What is the operating temperature range for this device?

The junction operating temperature range is -40°C to 150°C.

What package type is the LMR51420XDDCR supplied in?

It is supplied in a SOT-23-THIN package.

What is the switching frequency of the LMR51420XDDCR?

The device offers fixed switching frequency options of 500 kHz and 1.1 MHz.

Is the LMR51420XDDCR RoHS compliant?

Yes, it is RoHS3 Compliant.
