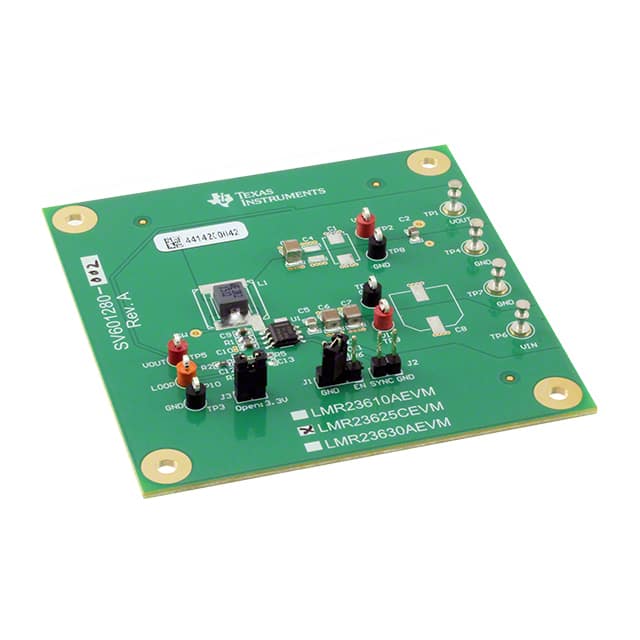

The LMR23625CEVM is a fully assembled and tested evaluation module for the Texas Instruments LMR23625C synchronous step-down converter. It is designed to operate from a wide input voltage range of 4.5V to 36V (12V nominal) and delivers a jumper-selectable output of 5.0V or 3.3V at up to 2.5A. The board features a switching frequency of 2.1MHz and includes frequency synchronization to an external clock.
The evaluation board includes jumper connectors to select output options, enable/disable the converter, and synchronize to an external clock. AC signal injection terminals are provided for feedback loop measurements. The board also includes hiccup mode short circuit protection. The LMR23625C utilizes SIMPLE SWITCHER technology for ease of use and robust performance.
This board is suitable for evaluating the LMR23625C in various DC/DC step-down applications, including industrial, automotive, and general-purpose power supplies. The supplied contents include the board(s) only. The board is fully populated and ready for use.
| Qty | Low | High |
|---|---|---|
| 1+ | $67.00 | $67.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 36V.
The output voltage is jumper-selectable: 5.0V or 3.3V.
The maximum output current is 2.5A.
The switching frequency is 2.1MHz.
It uses a buck (step-down) topology.
The utilized IC is the Texas Instruments LMR23625.
The board is listed as RoHS3 compliant, but this is unverified and low confidence due to a conflict with another source.
