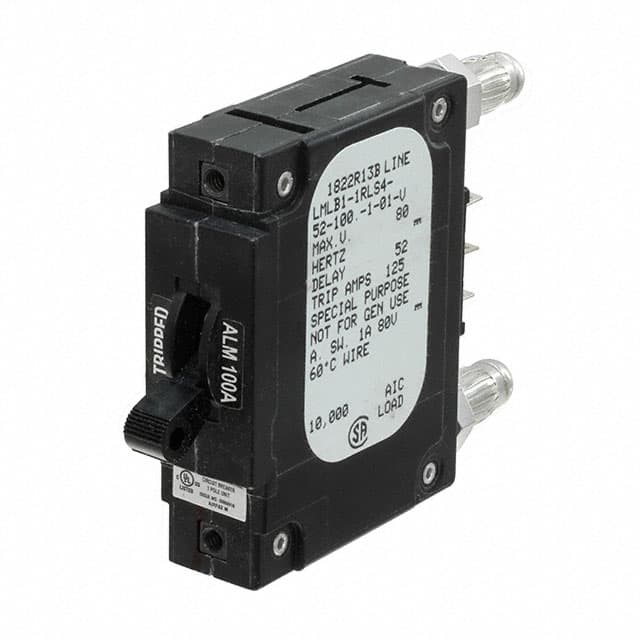

LMLB1-1RLS4-52-100.-1-01-V The Sensata LMLB1-1RLS4-52-100.-1-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay mechanism. It is rated for 100A and 80V.
Mfr Part #:

LMLB1-1RLS4-52-100.-1-01-V

Mfr Name: Sensata
Sensata
The Sensata LMLB1-1RLS4-52-100.-1-01-V is a single-pole circuit breaker featuring a magnetic hydraulic delay mechanism. It is rated for 100A and 80V.
Stock on Request

LMLB1-1RLS4-52-100.-1-01-V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

LMLB1-1RLS4-52-100.-1-01-V Description

Short technical summary and product information.

This Sensata LMLB1-1RLS4-52-100.-1-01-V is a single-pole circuit breaker designed for panel mounting. It utilizes a magnetic hydraulic delay for its tripping mechanism, providing reliable protection.



The breaker has a current rating of 100A and a voltage rating of 80V. It is approved by UL489, indicating compliance with relevant safety standards. The actuator type is a lever for easy operation.



This component is suitable for applications requiring robust circuit protection with specific current and voltage requirements. Its panel mount design facilitates integration into various electrical systems.

LMLB1-1RLS4-52-100.-1-01-V Quick Information

Product Type: Circuit Breaker
Series: LMLB1
Canonical Name: Sensata LMLB1-1RLS4-52-100.-1-01-V Magnetic Hydraulic Delay Circuit Breaker
Subcategory: Magnetic (Hydraulic Delay)

LMLB1-1RLS4-52-100.-1-01-V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMLB1-1RLS4-52-100.-1-01-V Features

  • 100A current rating for high-power circuits.
  • 80V voltage rating for DC applications.
  • Magnetic hydraulic delay for reliable tripping.
  • Panel mount design for easy integration.
  • UL489 approved for safety compliance.

LMLB1-1RLS4-52-100.-1-01-V Applications

  • Used in power distribution systems.
  • Suitable for industrial control panels.
  • Ideal for DC power circuits.
  • Provides overcurrent protection.

LMLB1-1RLS4-52-100.-1-01-V FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the LMLB1-1RLS4-52-100.-1-01-V circuit breaker?

The current rating is 100A.

What is the voltage rating for this circuit breaker?

The voltage rating is 80V.

What type of breaker mechanism does the LMLB1-1RLS4-52-100.-1-01-V use?

It uses a Magnetic (Hydraulic Delay) breaker type.

How many poles does this circuit breaker have?

This is a 1-pole circuit breaker.

What is the mounting type for this Sensata circuit breaker?

It is designed for Panel Mount.

Is the LMLB1-1RLS4-52-100.-1-01-V RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
