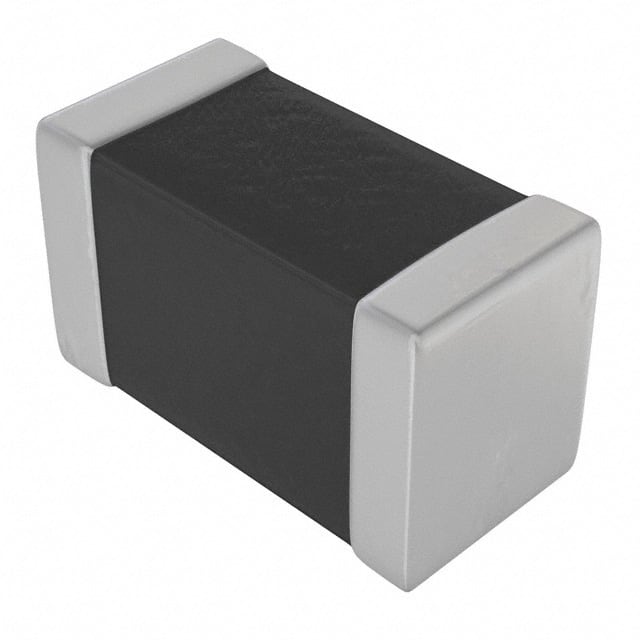

LMK316BJ106KL-T Multilayer ceramic capacitor (MLCC) with 10 µF capacitance, 10V rated voltage, X5R temperature coefficient, in 1206 (3216) case size.
Mfr Part #:

LMK316BJ106KL-T

Available from 3 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
Multilayer ceramic capacitor (MLCC) with 10 µF capacitance, 10V rated voltage, X5R temperature coefficient, in 1206 (3216) case size.
✓ Total Stock: 200,474 pcs
$ Price Range: $0.06 - $0.28

LMK316BJ106KL-T Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
200,000 pcs
On Request
200000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LMK316BJ106KL-T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Halogen Free
Insulation Resistance
Length
Mounting Type
Operating Temperature
Tape & Reel
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Width
View Similar Products (0)

LMK316BJ106KL-T Description

Short technical summary and product information.

The LMK316BJ106KL-T is a multilayer ceramic capacitor (MLCC) from Taiyo Yuden, offering 10 µF capacitance with ±10% tolerance and a rated voltage of 10V DC. It features an X5R temperature characteristic, providing stable capacitance over -55°C to +85°C with a capacitance change of ±15% (EIA). The capacitor is housed in a standard 1206 (EIA) / 3216 (JIS) surface-mount package, with dimensions of 3.2mm x 1.6mm and a maximum thickness of 1.8mm. Key electrical specifications include a maximum dissipation factor of 5% and a minimum insulation resistance of 500 MΩ·µF. The part is designed for general electronic equipment and is suitable for applications such as power supply bypassing, DC-DC converter smoothing, and digital circuit decoupling. It is supplied in embossed taping with a standard quantity of 2000 pieces per reel.

LMK316BJ106KL-T Quick Information

Product Type: Multilayer Ceramic Capacitor (MLCC)
Canonical Name: Multilayer Ceramic Capacitor 10 µF ±10% 10V X5R 1206
Subcategory: High Dielectric Type

LMK316BJ106KL-T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMK316BJ106KL-T Estimated Pricing

Qty Low High
1+ $0.28 $0.28
10+ $0.12 $0.12
100+ $0.10 $0.10
500+ $0.08 $0.08
1,000+ $0.07 $0.07
2,000+ $0.06 $0.06
4,000+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMK316BJ106KL-T Features

  • Capacitance of 10 µF with ±10% tolerance.
  • Rated for 10V DC operation.
  • X5R temperature coefficient for -55°C to 85°C.
  • Surface mount 1206 (3216) package.
  • Supplied in embossed taping 2000 pcs per reel.

LMK316BJ106KL-T Applications

  • Used in general digital circuit bypassing.
  • Suitable for power supply decoupling.
  • Ideal for DC-DC converter input/output smoothing.
  • Used in communication equipment and wireless applications.

LMK316BJ106KL-T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of this capacitor?

The capacitance is 10 µF with ±10% tolerance.

What is the rated voltage?

The rated voltage is 10V DC.

What is the temperature coefficient?

The temperature coefficient is X5R, with an operating temperature range of -55°C to +85°C.

What is the capacitance tolerance?

The capacitance tolerance is ±10%.

What is the package/case size?

The case size is 1206 (EIA) / 3216 (JIS).

What is the dissipation factor?

The dissipation factor (tanδ) is 5% maximum.

What is the insulation resistance?

The insulation resistance is 500 MΩ·µF minimum.
