LMK1C1104DQFR The Texas Instruments LMK1C1104DQFR is a high-performance LVCMOS clock buffer. It offers a 1:4 fan-out and operates at frequencies up to 250 MHz.
Mfr Part #:

LMK1C1104DQFR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LMK1C1104DQFR is a high-performance LVCMOS clock buffer. It offers a 1:4 fan-out and operates at frequencies up to 250 MHz.
✓ Total Stock: 3,228 pcs
$ Price Range: $1.24

LMK1C1104DQFR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,718 pcs
On Request
1718 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,510 pcs
On Request
1510 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LMK1C1104DQFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Input Type
Mounting Type
Number of Circuits
Operating Temperature
Output
Output Type
Propagation Delay
Ratio
Supplier Device Package
Supply Voltage
Type
Voltage
View Similar Products (0)

LMK1C1104DQFR Description

Short technical summary and product information.

The LMK1C1104DQFR from Texas Instruments is a modular, high-performance, low-skew, general-purpose clock buffer. This device is part of the LMK1C110x family, designed with a modular approach offering 1:2, 1:3, and 1:4 fan-out variations. All family members are pin-compatible and backwards compatible with the CDCLVC110x family.



Key electrical characteristics include a very low output skew of less than 50 ps and extremely low additive jitter of less than 50 fs maximum. The buffer supports a maximum frequency of 250 MHz at 3.3V and 200 MHz at 2.5V and 1.8V. It operates across a wide supply voltage range of 1.71V to 3.465V and features 3.3V tolerant inputs.

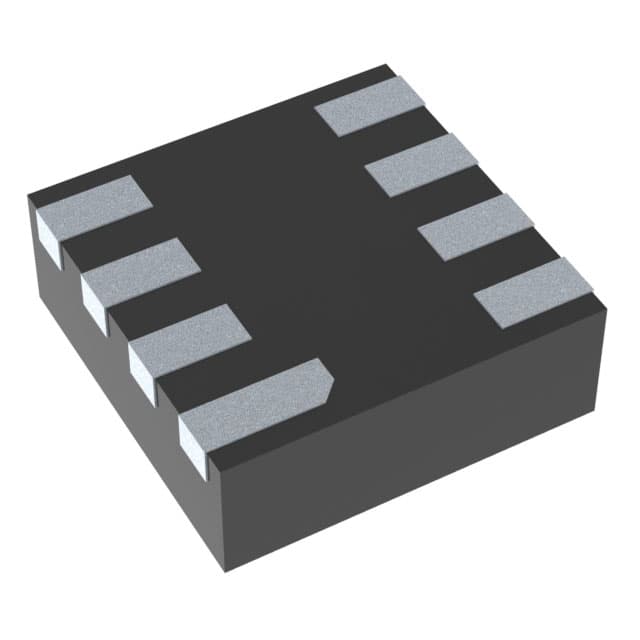

Designed for reliability, the LMK1C1104DQFR includes fail-safe inputs to prevent oscillation. It operates within an industrial temperature range of -40°C to 125°C. The device is available in an 8-pin WSON package, suitable for surface mounting.



Applications for this clock buffer include factory automation and control, telecommunications equipment, data center and enterprise computing, grid infrastructure, motor drives, and medical imaging.

LMK1C1104DQFR Quick Information

Product Type: Clock Buffer
Series: LMK1C110x
Canonical Name: LMK1C1104DQFR LVCMOS Clock Buffer
Subcategory: Clock Buffers, Drivers

LMK1C1104DQFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMK1C1104DQFR Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMK1C1104DQFR Features

  • High-performance 1:4 LVCMOS clock buffer.
  • Very low output skew < 50 ps.
  • Extremely low additive jitter < 50 fs.
  • Wide operating temperature range -40°C to 125°C.
  • Available in 8-pin WSON package.

LMK1C1104DQFR Applications

  • Ideal for factory automation systems.
  • Suitable for telecommunications equipment.
  • Used in data center infrastructure.
  • Applicable for grid infrastructure.
  • Designed for motor drive control.

LMK1C1104DQFR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output type of the LMK1C1104DQFR?

The output type is Clock, LVCMOS.

What is the supported input voltage for the LMK1C1104DQFR?

The supply voltage options are 1.8V, 2.5V, and 3.3V.

What is the maximum output skew of the device?

< 50 ps

What packages are available for the LMK1C1104DQFR?

The device is available in 8-WSON (2x2) and 8-WFDFN surface mount packages.

What is the operating temperature range of the LMK1C1104DQFR?

-40°C to 125°C
