| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71,887 pcs
|
71887 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dissipation Factor | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

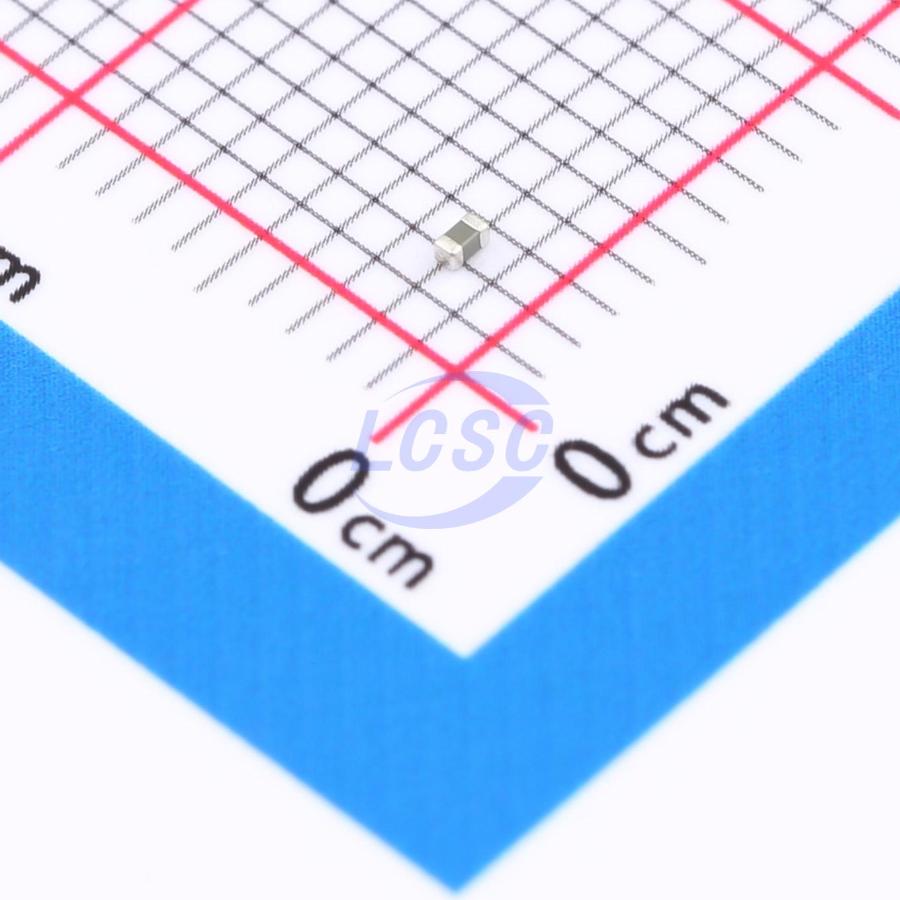

This Taiyo Yuden LMK105BJ225KV-F is a multilayer ceramic capacitor (MLCC) designed for surface mount applications. It offers a capacitance of 2.2 µF with a tolerance of ±10% and a rated voltage of 10V.
The capacitor utilizes the X5R temperature characteristic, providing stable performance over an operating temperature range of -55°C to +85°C. Its compact 0402 (1005 metric) package size makes it suitable for space-constrained designs.
Key electrical specifications include a maximum dissipation factor of 10% and an insulation resistance of at least 100 MΩ·µF. The dimensions are 1.00mm in length and 0.50mm in width, with a maximum thickness of 0.65mm.
This component is suitable for applications such as SMPS filtering. It is supplied in standard packaging quantities of 10000 pieces on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 2.2 µF.
The rated voltage is 10V.
The temperature characteristic is X5R.
The operating temperature range is -55°C to +85°C.
The dimensions are 1.00mm in length, 0.50mm in width, and a maximum thickness of 0.65mm.
The standard packaging quantity is 10000 pieces.
