Mfr Part #:

LMK04616ZCRR

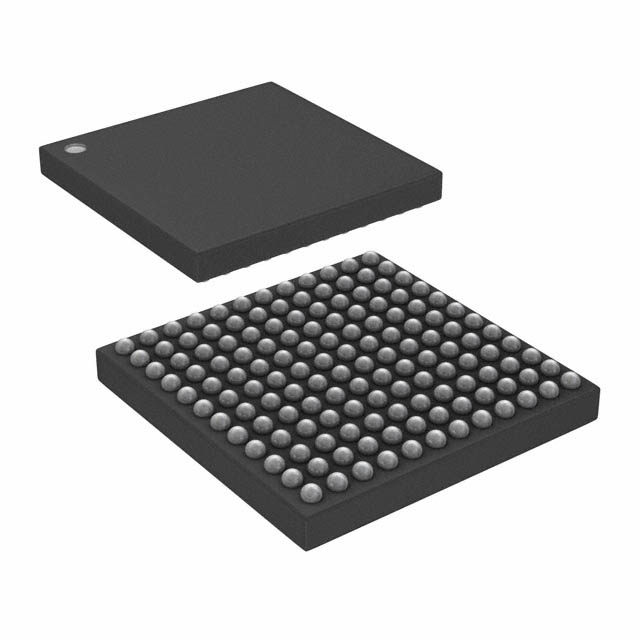

The Texas Instruments LMK04616ZCRR is an ultra low-noise and low power JESD204B compliant clock jitter cleaner. It features 16 differential output clocks and a maximum output frequency of 2 GHz.

✓ Total Stock: 1,644 pcs

$ Price Range: $35.11

LMK04616ZCRR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	1,644 pcs On Request	1644 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LMK04616ZCRR Description

Short technical summary and product information.

The LMK04616ZCRR from Texas Instruments is a high-performance clock jitter cleaner designed for demanding applications. It boasts an ultra-low noise dual-loop PLL architecture, achieving RMS jitter as low as 48-fs (10 kHz to 20 MHz) at 1966.08 MHz.

This device supports JESD204B compliance and offers 16 differential output clocks configurable in 8 frequency groups. The output frequency can range from 0.03 MHz to 2 GHz, with programmable output swing between 700 mVpp and 1600 mVpp. It accepts various input types including LVCMOS, LVDS, and LVPECL.

Key features include a 16-bit channel divider, precision digital delay adjustment, and holdover mode for input signal loss. The LMK04616ZCRR operates over an industrial temperature range of -40°C to 85°C and is available in a 144-NFBGA package.

With a typical power consumption of 1.05 W, it is suitable for power-sensitive designs. The device supports multiple supply voltages, including 1.8V for outputs/inputs and 3.3V for digital and PLL sections. It interfaces via a 3- or 4-wire SPI connection.

LMK04616ZCRR Quick Information

Product Type: Clock Jitter Cleaner

Canonical Name: LMK04616ZCRR Clock Jitter Cleaner

Subcategory: Clock Generators, PLLs, Frequency Synthesizers

LMK04616ZCRR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LMK04616ZCRR Estimated Pricing

Qty	Low	High
1+	$35.11	$35.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMK04616ZCRR Features

Ultra low noise dual-loop PLL architecture.
JESD204B compliant clock jitter cleaner.
16 differential output clocks up to 2 GHz.
Programmable output swing from 700 mVpp to 1600 mVpp.
Operates from -40°C to 85°C industrial temperature range.

LMK04616ZCRR Applications

Ideal for high-speed data converter synchronization.
Suitable for JESD204B interface clocking.
Used in test and measurement equipment.
Applicable for telecommunications infrastructure.

LMK04616ZCRR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum output frequency of the LMK04616ZCRR?

The maximum output frequency is 2 GHz.

What is the typical RMS jitter for the LMK04616ZCRR?

The typical RMS jitter is 65-fs.

What are the supported input types for the LMK04616ZCRR?

Supported input types include LVCMOS, LVDS, and LVPECL.

What is the operating temperature range of the LMK04616ZCRR?

The operating temperature range is -40°C to 85°C.

What package type is the LMK04616ZCRR available in?

The LMK04616ZCRR is available in a 144-NFBGA (10x10) package.

Does the LMK04616ZCRR support JESD204B?

Yes, the LMK04616ZCRR is JESD204B compliant.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	Texas Instruments
Differential	Yes/Yes
Divider	Yes/No
Frequency	2000-MHz
Input	HCSL, HSDS, LCPECL, LVCMOS, LVDS, LVPECL
Input Type	LVCMOS, LVDS, LVPECL
Interface	3- or 4-wire SPI
Lead Spacing	10 mm
Mounting Type	Surface Mount
Noise Floor	-165-dBc/Hz
Number of Circuits	1
Operating Temperature	-40°C / 85°C
Output	HCSL, HSDS, LVDS, LVPECL
Output Type	LVDS, LVPECL
PLL	Yes
Ratio	4:16
Supplier Device Package	144-NFBGA (10x10)
Type	Jitter Cleaner
Voltage	1.7V / 3.465V
