Mfr Part #:

LMK04208NKDR

The Texas Instruments LMK04208NKDR is an ultra-low-noise clock jitter cleaner featuring dual loop PLLs. It offers up to 7 outputs with a maximum frequency of 3072 MHz.

✓ Total Stock: 3,013 pcs

$ Price Range: $7.23

LMK04208NKDR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	3,013 pcs On Request	3013 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LMK04208NKDR Description

Short technical summary and product information.

The LMK04208NKDR from Texas Instruments is an advanced clock jitter cleaner designed for high-performance timing applications. It utilizes a Dual Loop PLLatinum™ PLL Architecture to achieve ultra-low RMS jitter, measuring as low as 111 fs (12 kHz to 20 MHz).

This device supports a wide output frequency range from 0.329 MHz to 3072 MHz, with flexible output types including LVCMOS, LVDS, and LVPECL. It features two redundant input clocks with loss-of-signal (LOS) detection and automatic switch-over modes. The LMK04208NKDR includes integrated low-noise crystal oscillator circuitry and can operate in holdover mode when input clocks are lost.

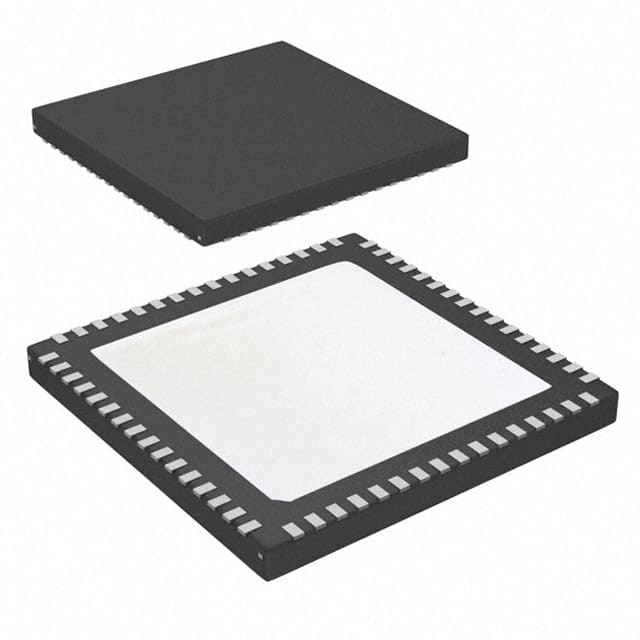

Packaged in a 64-pin WQFN (9 mm x 9 mm), the LMK04208NKDR is designed for surface mount applications. It operates within an industrial temperature range of -40°C to +85°C and requires a supply voltage between 3.15V and 3.45V. The device offers multiple operating modes, including Dual PLL, Single PLL, and Clock Distribution, making it suitable for various system synchronization needs.

LMK04208NKDR Quick Information

Product Type: Clock Jitter Cleaner

Canonical Name: LMK04208 Ultra-Low-Noise Clock Jitter Cleaner with Dual Loop PLLs

Subcategory: Clock Generators, PLLs, Frequency Synthesizers

LMK04208NKDR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LMK04208NKDR Estimated Pricing

Qty	Low	High
1+	$7.23	$7.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMK04208NKDR Features

Ultra-low RMS jitter performance.
Dual Loop PLLatinum™ PLL architecture.
Supports multiple input/output types.
Wide output frequency range.
64-pin WQFN package for surface mounting.

LMK04208NKDR Applications

Ideal for high-performance timing systems.
Suitable for clock distribution networks.
Used in systems requiring low jitter clocks.
Supports redundant clock input configurations.

LMK04208NKDR FAQs

6 frequently asked questions generated from this part’s specifications.

What is the typical RMS jitter of the LMK04208NKDR?

The typical RMS jitter is 111 fs for the 12 kHz to 20 MHz range and 123 fs for the 100 Hz to 20 MHz range.

What is the maximum output frequency supported by the LMK04208NKDR?

The maximum output frequency is 3072 MHz.

What are the supported input and output types for the LMK04208NKDR?

The supported input and output types are LVCMOS, LVDS, and LVPECL.

What is the operating temperature range for this clock jitter cleaner?

The operating temperature range is -40°C to 85°C.

What is the operating voltage range for the LMK04208NKDR?

The operating voltage range is 3.15V to 3.45V.

What package type is the LMK04208NKDR supplied in?

The LMK04208NKDR is supplied in a 64-WQFN (9x9) package.

Category	Clock Generators, PLLs, Frequency Synthesizers
Manufacturer Name	Texas Instruments
Differential	Yes/Yes
Divider	Yes/No
Frequency	1.536 GHz
Input	LVCMOS, LVDS, LVPECL
Input Type	LVCMOS, LVDS, LVPECL
Lead Spacing	9 mm
Mounting Type	Surface Mount
Number of Circuits	1
Number of Outputs	7
Operating Temperature	-40 to 85 °C
Output	LVCMOS, LVDS, LVPECL
Output Type	LVCMOS, LVDS, LVPECL
PLL	Yes
Ratio	2:7
Supplier Device Package	64-WQFN (9x9)
Voltage	3.15V to 3.45V
