| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,003 pcs
|
2003 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
1,407 pcs
|
1407 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The LMK03328RHST from Texas Instruments is an ultra-low noise clock generator designed for high-performance timing applications. It incorporates two fractional-N frequency synthesizers with integrated VCOs, offering flexible clock distribution and fan-out capabilities. This device supports a wide operating voltage range from 1.7V to 3.465V and operates reliably within an industrial temperature range of -40°C to 85°C.
The LMK03328RHST boasts an ultra-low jitter of 100fs RMS typical for frequencies above 100MHz and provides robust supply noise immunity with a PSNR of -80dBc. It supports crystal inputs from 10MHz to 52MHz and external inputs from 1MHz to 300MHz. The device offers fine frequency margining of ±50ppm typical.

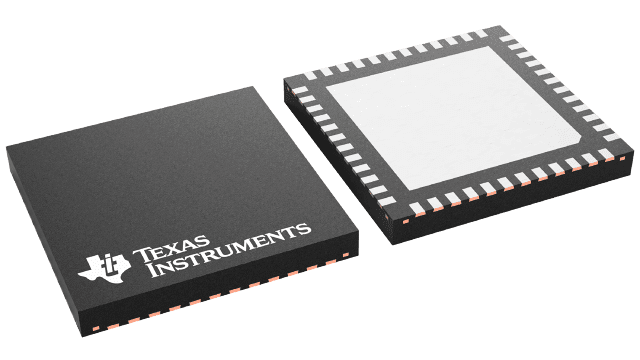

Packaged in a 48-WQFN (7x7mm) with an exposed pad, the LMK03328RHST is suitable for surface mount applications. It can generate multiple clocks for various multi-gigabit serial interfaces and digital devices, helping to reduce BOM cost and board area while improving reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.09 | $11.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.7V to 3.465V.
The operating temperature range is -40°C to 85°C.
The LMK03328RHST is available in a 48-WQFN (7x7mm) package.
The LMK03328RHST is RoHS3 Compliant.
The MSL is Level 1.
The typical jitter is 100fs RMS.
The typical fine frequency margining is ±50ppm.
