| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,228 pcs
|
1228 pcs | On Request | 1 | On Request | On Request | 1614+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Lead Spacing | |
| Noise Figure | |
| Operating Temperature | |
| Supply Current | |
| Tape & Reel | |
| Voltage |
The LMH6517SQX/NOPB from Texas Instruments is a high-performance, digitally controlled dual 16-bit ADC driver. It is designed for IF and baseband applications, offering low power consumption and low noise characteristics.
Key electrical specifications include an OIP3 of 43dBm at 200MHz, a noise figure of 5.5dB, and a gain step size of 0.5dB with an accuracy of 0.05dB. The device supports a frequency range of up to 1200 MHz and operates on a single 5V supply. Each channel consumes approximately 80mA of supply current.
This component features a 200 Ohm resistive differential input and a low impedance differential output. It includes a disable function for each channel and supports parallel gain control via an SPI compatible serial bus or two-wire pulse mode control. The on-chip register stores the gain setting, and linearity and phase show low sensitivity to gain changes.

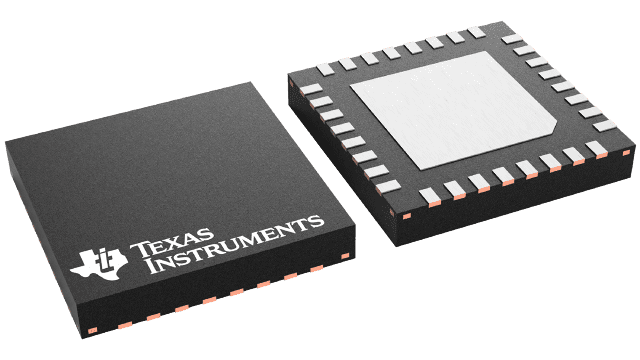

The LMH6517SQX/NOPB is housed in a compact 32-pin WQFN (RTV) package, suitable for surface mounting. It operates across a temperature range of -40°C to 85°C, making it versatile for various environmental conditions. The standard package quantity is 4,500 units on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.34 | $7.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 to 85°C.
The noise figure is 5.5dB.
The frequency range is 1200 MHz.
It operates on a single 5V supply voltage.
The LMH6517SQX/NOPB is available in a 32-pin WQFN (RTV) package.
