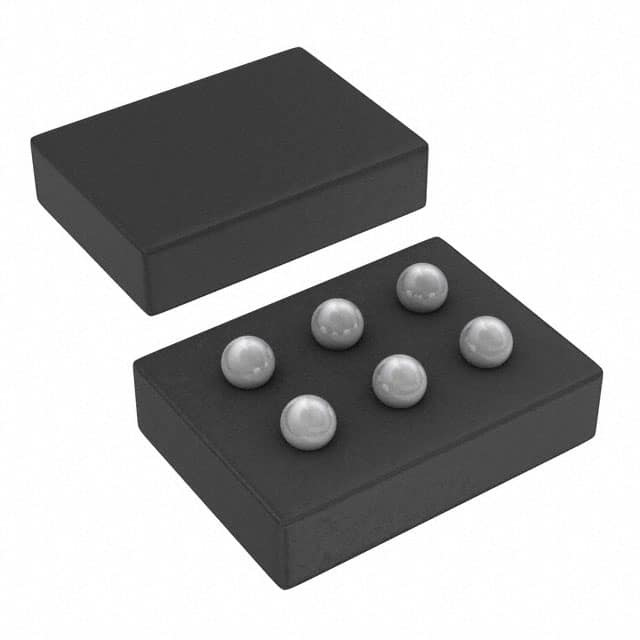

The Texas Instruments LMH2120UM/NOPB is a 40 dB Linear RMS power detector, ideal for precise measurement of modulated RF signals with large peak-to-average ratios, commonly found in W-CDMA and LTE applications. Its RMS measurement topology ensures modulation-independent readings.
This device operates from 50 MHz to 6 GHz, providing an accurate, temperature and supply-insensitive output voltage that is linearly related to the RF input power. With a dynamic range of 40 dB and an input power range from -35 dBm to 5 dBm, it offers excellent conformance to a linear response, simplifying integration. The detector has a typical current consumption of 2.9 mA and operates with a single supply voltage from 2.7V to 5V.
The LMH2120UM/NOPB is suitable for multi-band operations and features a high temperature insensitivity and minimal slope and intercept variation. It includes a shutdown functionality for low power consumption. The device is housed in a tiny 6-bump DSBGA package, measuring 1.22x0.82 mm, and is designed for surface mount applications.
Key specifications include an accuracy of ±0.5 dB, supporting RF signal types such as CDMA, GSM, EDGE, and W-CDMA. The operating temperature range is from -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 5V.
The frequency range is from 50 MHz to 6 GHz.
The typical dynamic range is 40 dB.
The typical current consumption is 2.9 mA.
The operating temperature range is -40°C to 85°C.
It is supplied in a 6-DSBGA (1.22x0.82) package for surface mounting.
