| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,546 pcs
|
1546 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Frequency | |
| Input Range | |
| Mounting Type | |
| Operating Temperature | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The LMH2100TMX/NOPB from Texas Instruments is a 40-dB logarithmic RF power detector designed for CDMA and WCDMA applications. It operates across a wide frequency range of 50 MHz to 4 GHz, providing an accurate, temperature and supply compensated output voltage that is linearly related to the RF input power in dBm.
This device features a supply voltage range of 2.7 V to 3.3 V and an RF power detection range from -45 dBm to -5 dBm. It boasts ±0.5dB accuracy and supports multi-band operation. The LMH2100 is ideal for direct use with a 30-dB directional coupler. External configuration options are available for output filter bandwidth using an external resistor and capacitor.

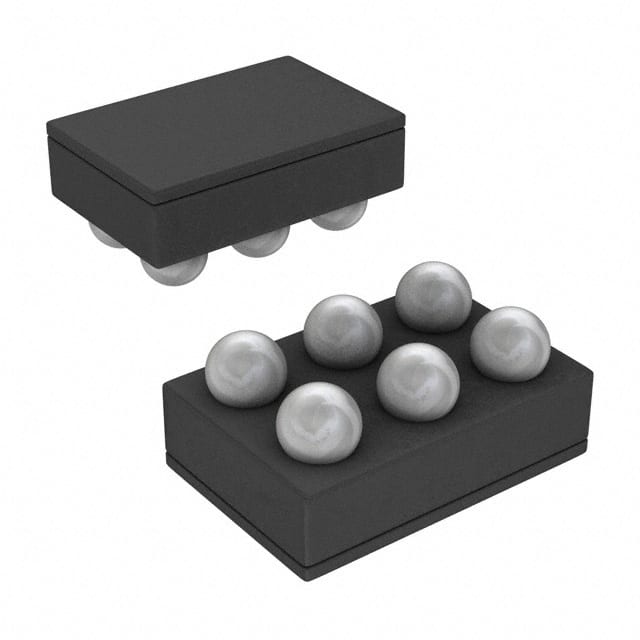

Packaged in a compact 6-DSBGA (6-WFBGA) surface mount package, the LMH2100TMX/NOPB is suitable for space-constrained designs. It operates within a temperature range of -40°C to 85°C. The component is designed for efficient power detection in various wireless communication systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LMH2100TMX/NOPB operates from 50 MHz to 4 GHz.
The RF power detection range is from -45 dBm to -5 dBm.
The device operates with a supply voltage between 2.7 V and 3.3 V.
The accuracy of the power detection is ±0.5 dB.
It is supplied in a 6-DSBGA (6-WFBGA) package.
The operating temperature range is -40°C to 85°C.
