| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,696 pcs
|
1696 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Data Rate | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Power Consumption | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Texas Instruments LMH0387SL/NOPB is a high-performance integrated circuit designed for Serial Digital Interface (SDI) applications, supporting 3G, HD, and SD standards. This device acts as a configurable I/O adaptive cable equalizer and cable driver, crucial for maintaining signal integrity over long cable runs.
Key electrical specifications include a maximum data rate of 2970 Mbps, enabling high-definition video transmission. It operates on a single 3.3V supply and consumes approximately 235 mW of power. The control interface utilizes SPI serial communication. The equalizer can compensate for signal degradation up to 120 meters of Belden 1694A cable at 2.97Gbps.

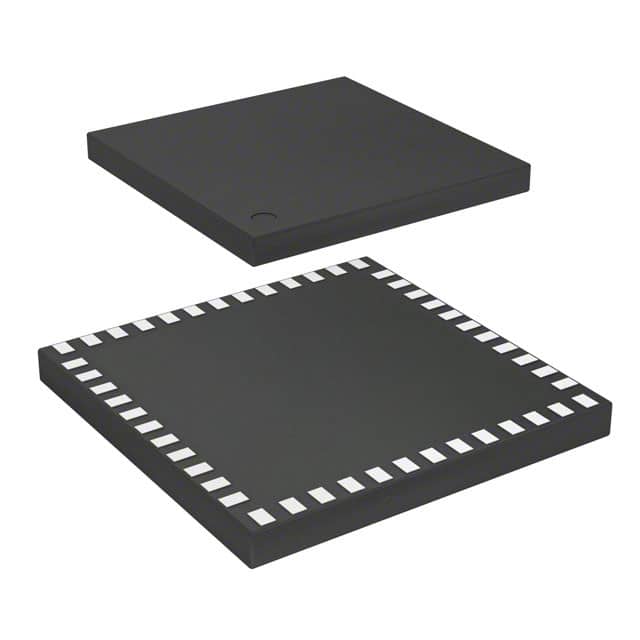

Packaged in a 48-pin TLGA (7x7 mm) format, the LMH0387SL/NOPB is designed for surface mounting. It operates within an industrial temperature range of -40°C to 85°C, making it suitable for demanding environments. The device is compliant with ST 424, ST 292, ST 344, and ST 259 standards, and also supports DVB-ASI at 270Mbps.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.58 | $13.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum data rate is 2970 Mbps.
The operating voltage is between 3.135V and 3.465V.
It operates from -40°C to 85°C.
It is available in a 48-pin TLGA (7x7) package for surface mounting.
