| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Data Rate | |
| Function | |
| Mounting Type | |
| Operating Voltage | |
| Standards | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Texas Instruments LMH0031VS is an integrated circuit designed for digital video signal processing. As a deserializer and descrambler, it is crucial for reconstructing video signals in professional broadcast and production environments.
This device supports a wide range of serial digital video data rates, including 270 Mbps, 360 Mbps, 540 Mbps, 1.483 Gbps, and 1.485 Gbps, with automatic detection capabilities. It features a typical power consumption of 850mW and operates with I/O voltages of 3.3V and logic voltages of 2.5V. The operating temperature range is from 0°C to 70°C.

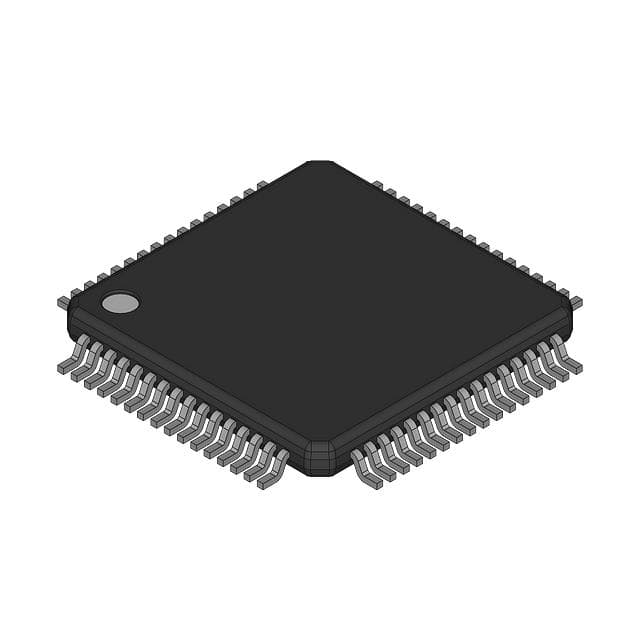

The LMH0031VS is housed in a 64-TQFP package, suitable for surface mounting. Its functionality includes features like a fast VCO lock time, built-in self-test, and video test pattern generation, aiding in system diagnostics and setup. The component is compliant with SMPTE standards, making it suitable for professional video applications.
Key technical specifications include a maximum data rate of 1485 Mbps and a typical power consumption of 705 mW. The control interface can be managed via pin or I2C. The device also offers options for LSB de-dithering and includes ancillary data FIFOs for extensive packet handling.
The maximum data rate supported by the LMH0031VS is 1485 Mbps.
The LMH0031VS operates within a temperature range of 0°C to 70°C.
The LMH0031VS is available in a 64-TQFP package.
The LMH0031VS supports 270 Mbps, 360 Mbps, 540 Mbps, 1.483 Gbps, and 1.485 Gbps.
The typical power consumption is 850 mW.
The device operates with a 3.3V I/O power supply and a 2.5V logic power supply, and also supports a voltage range of 2.375V to 2.625V.
