Mfr Part #:

LMG5200MOFT

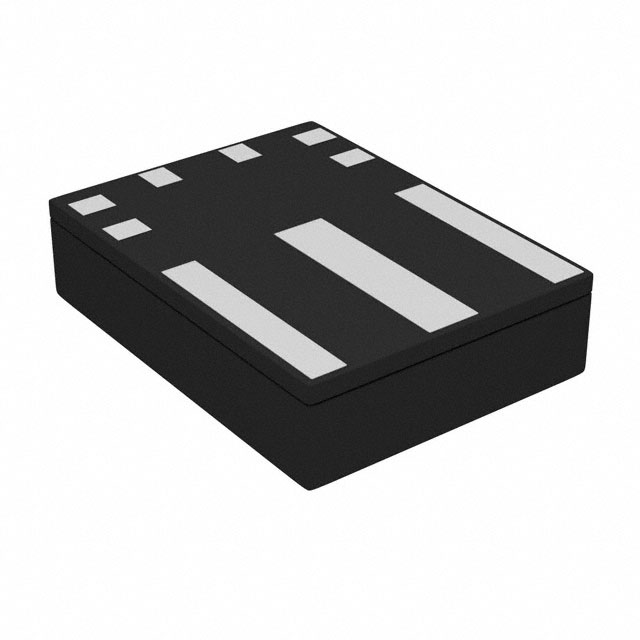

Name: LMG5200MOFT
Brand: Texas Instruments
SKU: LMG5200MOFT

Mfr Name: Texas Instruments

Description:

IC HALF BRIDGE DRIVER 10A 9QFN

Stock on Request

LMG5200MOFT Description

Short technical summary and product information.

IC HALF BRIDGE DRIVER 10A 9QFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

LMG5200MOFR

Texas Instruments

IC HALF BRIDGE DRIVER 10A 9QFN

Category	Full Half-Bridge Drivers
Manufacturer Name	Texas Instruments
Applications	Synchronous Buck Converters
Current	10A
Fault Protection	UVLO
Features	Bootstrap Circuit
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	15mOhm LS, 15mOhm HS
Supplier Device Package	9-QFN (8x6)
Technology	NMOS
Voltage	80V
