Mfr Part #:

LMG3425R050RQZT

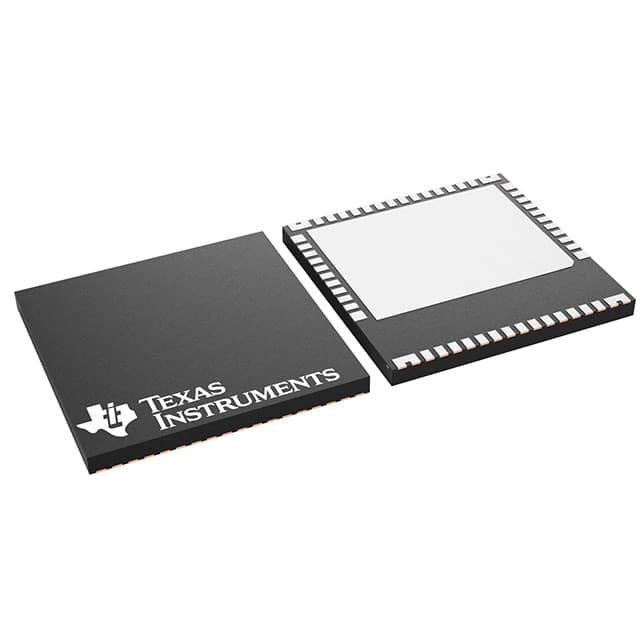

Name: LMG3425R050RQZT
Brand: Texas Instruments
SKU: LMG3425R050RQZT

Mfr Name: Texas Instruments

Description:

IC HALF BRIDGE DRVR 1.2A 54VQFN

Stock on Request

LMG3425R050RQZT Description

Short technical summary and product information.

IC HALF BRIDGE DRVR 1.2A 54VQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

LMG3422R050RQZR

Texas Instruments

IC HALF BRIDGE DRVR 1.2A 54VQFN

LMG3422R050RQZT

Texas Instruments

IC HALF BRIDGE DRVR 1.2A 54VQFN

LMG3425R050RQZR

Texas Instruments

600-V 50-M GAN FET WITH INTEGRAT

Category	Full Half-Bridge Drivers
Manufacturer Name	Texas Instruments
Applications	General Purpose
Current	1.2A
Fault Protection	Over Current, Over Temperature, UVLO
Features	Bootstrap Circuit, Latch Function, Slew Rate Controlled
Interface	PWM
Load Type	Inductive, Capacitive, Resistive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	43mOhm
Supplier Device Package	54-VQFN (12x12)
Technology	MOSFET (Metal Oxide)
Voltage	7.5V ~ 18V
