Mfr Part #:

LMG3422R030RQZT

Name: LMG3422R030RQZT
Brand: Texas Instruments
SKU: LMG3422R030RQZT

Mfr Name: Texas Instruments

Description:

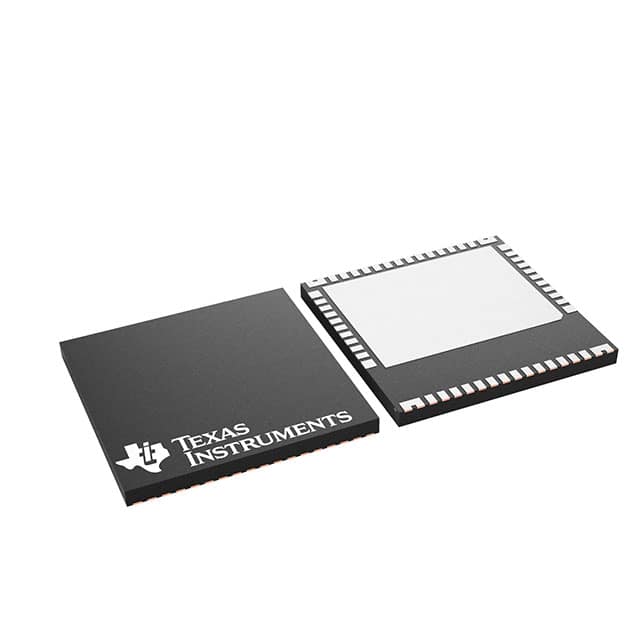

IC HALF BRIDGE DRVR 1.2A 54VQFN

Stock on Request

LMG3422R030RQZT Description

Short technical summary and product information.

IC HALF BRIDGE DRVR 1.2A 54VQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

LMG3422R030RQZR

Texas Instruments

600-V 30-M GAN FET WITH INTEGRAT

Category	Full Half-Bridge Drivers
Manufacturer Name	Texas Instruments
Applications	Synchronous Buck Converters
Current	1.2A
Fault Protection	Current Limiting, Over Current, Over Temperature, UVLO
Interface	Logic, PWM
Load Type	Inductive, Capacitive
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	35mOhm
Supplier Device Package	54-VQFN (12x12)
Voltage	7.5V ~ 18V
