LMG1210RVRR The Texas Instruments LMG1210RVRR is a 200V half-bridge gate driver designed for GaNFET and MOSFET applications. It offers high-speed operation and precise control.
Mfr Part #:

LMG1210RVRR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments LMG1210RVRR is a 200V half-bridge gate driver designed for GaNFET and MOSFET applications. It offers high-speed operation and precise control.
✓ Total Stock: 1,701 pcs
$ Price Range: $1.79

LMG1210RVRR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,651 pcs
On Request
1651 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LMG1210RVRR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Features
Gate Type
High Side Voltage
Input Type
Mounting Type
Number of Drivers
Operating Temperature
Quiescent Current
Rise
Supplier Device Package
Voltage
View Similar Products (0)

LMG1210RVRR Description

Short technical summary and product information.

The LMG1210RVRR from Texas Instruments is a high-performance half-bridge gate driver IC. It is engineered to drive GaNFET and MOSFET power switches with high efficiency and speed.



Key electrical specifications include a 200V high-side voltage, 1.5A peak source current, and 3A peak sink current. The device operates with an input supply voltage range of 6V to 18V and supports bootstrap supply voltages up to 300V. It features a typical propagation delay of 10ns and rise/fall times of 0.5ns, enabling operation up to 50MHz.

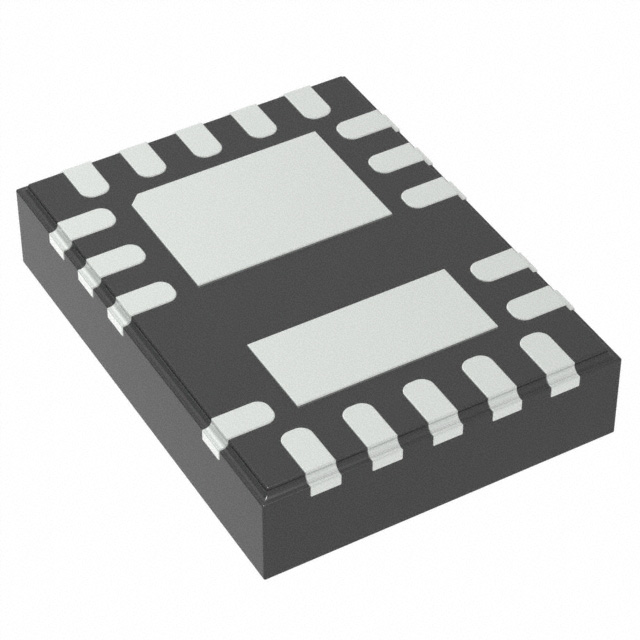

The driver offers programmable dead-time control, a bootstrap supply voltage clamp, and an internal LDO for voltage rail adaptability. It includes undervoltage lockout (UVLO) and overtemperature protection for robust operation. The LMG1210RVRR is available in a low-inductance 19-WQFN package with an exposed pad, suitable for surface mounting.



This gate driver is ideal for applications requiring fast switching and high power density, such as power supplies, motor drives, and industrial power systems.

LMG1210RVRR Quick Information

Product Type: Gate Driver
Canonical Name: LMG1210RVRR Half-Bridge Gate Driver
Subcategory: Half-Bridge Gate Driver

LMG1210RVRR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LMG1210RVRR Estimated Pricing

Qty Low High
1+ $1.79 $1.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

LMG1210RVRR Features

  • Drives GaNFET and MOSFET power switches.
  • 200V high-side voltage capability.
  • 1.5A source and 3A sink peak currents.
  • Up to 50MHz operation with fast switching.
  • Adjustable dead-time control included.

LMG1210RVRR Applications

  • Suitable for high-frequency power supplies.
  • Ideal for efficient motor drive systems.
  • Used in industrial power applications.
  • Enables high power density designs.

LMG1210RVRR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak output current for the LMG1210RVRR?

The LMG1210RVRR has a peak output current of 3 A.

What is the operating temperature range of the LMG1210RVRR?

The operating temperature range for the LMG1210RVRR is -40°C to 125°C.

What package type is the LMG1210RVRR available in?

The LMG1210RVRR is available in a 19-WQFN (3x4) package with an exposed pad.

What is the RoHS status of the LMG1210RVRR?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the LMG1210RVRR?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the input supply voltage range for the LMG1210RVRR?

The input supply voltage range is 6V to 18V.

What is the typical propagation delay of the LMG1210RVRR?

The typical propagation delay is 10 ns.
