| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

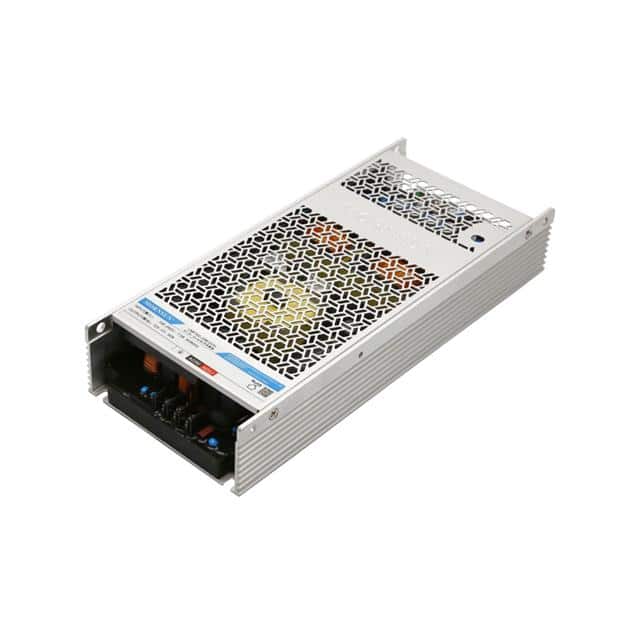

The Mornsun Power LMF750-23B36UH is an enclosed AC DC converter designed for industrial and commercial applications. It provides a robust power output of 752W with a high efficiency rating of 95%, contributing to energy savings and reduced heat generation.
Key electrical specifications include a single output and features such as adjustable output, DC input capability, and Power Factor Correction (PFC). The unit is rated for 4 kV isolation voltage, ensuring safety in demanding environments. Its operating temperature range spans from -40°C to 85°C, with derating applied at higher temperatures, making it suitable for various climatic conditions.
Mechanically, this converter features a chassis mount design with dimensions of 237.0mm in length, 100.0mm in width, and 41.0mm in height. It adheres to standard numbers 60335-1 and 62368-1, indicating compliance with relevant safety and performance standards for household appliances and ITE equipment.
It operates from -40°C to 85°C with derating.
It delivers 752W of output power.
The efficiency is 95%.
The isolation voltage is 4 kV.
It is chassis mount.
It has a single output.
It complies with 60335-1 and 62368-1.
