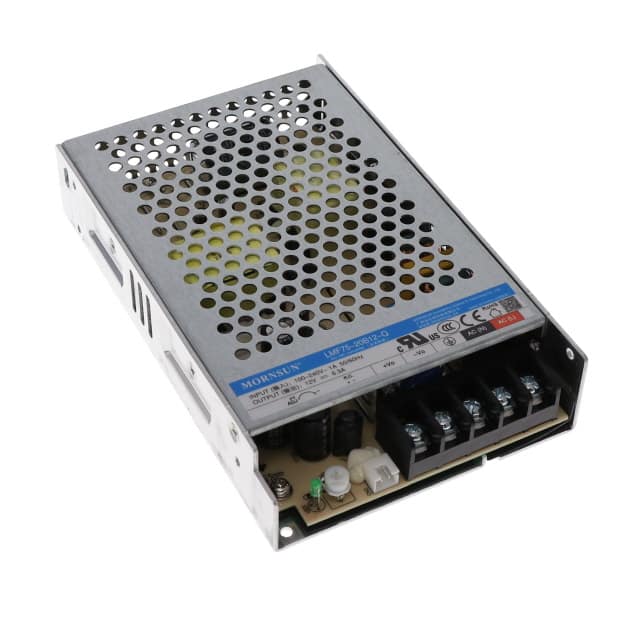

The Morning Star Industrial LMF75-20B12-Q is an enclosed, conformal coated AC/DC converter designed for reliable power conversion. It delivers 76W of power with a 12V output and a current rating of 6.3A.
This converter features a chassis mount for easy integration into various systems. Its operating temperature range is -30°C to 70°C with derating. Key electrical specifications include an efficiency of 85% and 4kV voltage isolation.
Designed for applications such as household appliances and ITE (Commercial), the LMF75-20B12-Q offers features like adjustable output, DC input capability, remote on/off, and universal input. It meets standards including 60335-1 and 62368-1, and holds CCC, CE, cURus, and UL approvals.
The dimensions are 159.0mm x 97.0mm x 30.0mm. It is RoHS3 compliant and has an MSL rating of 1.
The LMF75-20B12-Q has a power output of 76W.
The output voltage is 12V and the current is 6.3A.
The operating temperature range is -30°C to 70°C with derating.
The LMF75-20B12-Q is designed for chassis mounting.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It meets standards 60335-1 and 62368-1.
