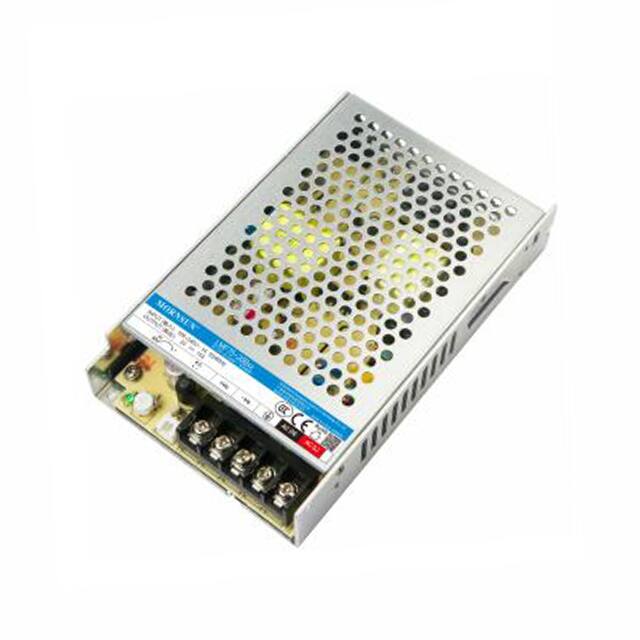

The Mornsun LMF75-20B12 is an enclosed AC/DC switching power supply designed for various applications. It offers a universal input voltage range of 85-264V AC or 120-370V DC, providing flexibility in power source selection.
This power supply delivers a nominal output power of 75.6W with a single output voltage of 12V at 6.3A. It boasts high efficiency of 85% and features built-in active PFC function. The unit is designed for chassis mounting and includes essential protections such as short circuit, over load, over voltage, and over temperature.
Key features include high I/O isolation voltage up to 4000VAC, remote ON/OFF control, and compliance with safety standards like IEC/EN/UL62368 and EN60335. The operating temperature range is -25°C to +70°C with derating. Its dimensions are 159.0mm x 97.0mm x 30.0mm.
The input voltage range is 85-264 VAC or 120-370 VDC.
It provides a single output of 12V at 6.3A (75.6W).
The operating temperature range is -25°C to +70°C with derating.
It includes short circuit, overload, overvoltage, and overtemperature protection.
85%.
4000 VAC.
It is an enclosed chassis mount converter.
