| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

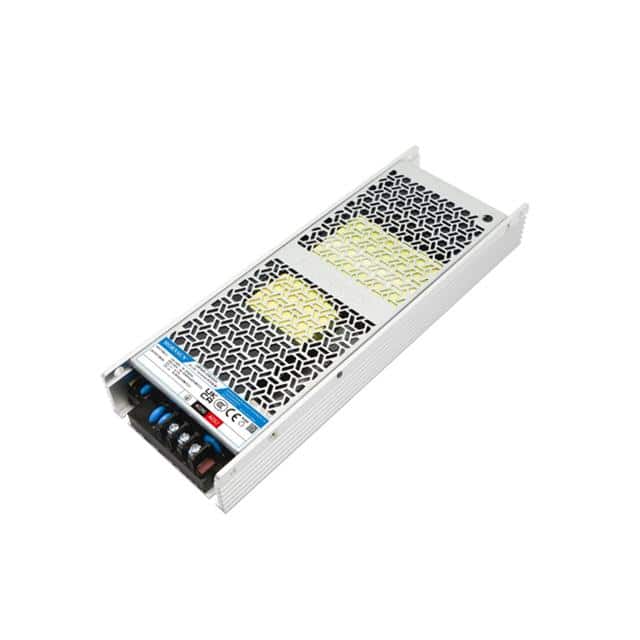

The MORNSUN LMF500-23B12UH is an enclosed AC/DC power supply from the Fanless Semi-potted type series, designed for reliable power conversion. It offers a substantial 500.4W of power, suitable for demanding applications.
Key electrical specifications include an input voltage range of 85-305 VAC (or 120-430 VDC), a stable 12VDC output voltage, and a high output current of 41.7A. The unit boasts an efficiency of 94% and provides 4000 VAC of isolation.
Designed for versatility, this power supply features adjustable output, DC input capability, and Power Factor Correction (PFC). It operates within a wide temperature range of -40°C to 85°C with derating. The dimensions are 232.0mm in length, 81.0mm in width, and 31.0mm in height.
This AC/DC converter is suitable for applications in household appliances and ITE (Commercial) environments, adhering to standards such as 60335-1 and 62368-1. It is chassis mountable.
85-305 VAC or 120-430 VDC.
12 VDC at 41.7A.
-40°C to 85°C with derating.
94%.
4000 VAC.
Chassis mount, 232.0mm x 81.0mm x 31.0mm.
60335-1 and 62368-1.
