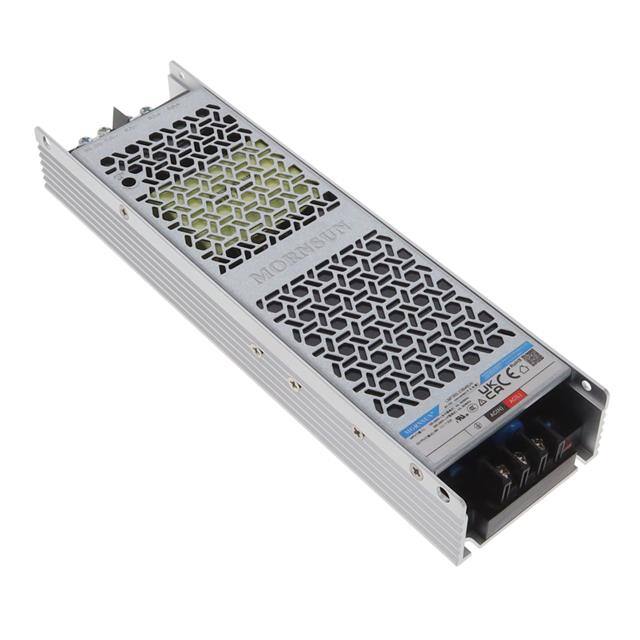

The Mornsun LMF350-23B48UH is an enclosed AC/DC switching power supply designed for industrial and outdoor applications. It delivers a continuous output power of 350W with a single 48V output at 7.32A.
This power supply accepts a universal input voltage range of 85 to 305VAC, and can also accept DC input. It features high efficiency up to 94% and includes Active Power Factor Correction (PFC). The unit is fanless and semi-potted, with an operating ambient temperature range of -40°C to +85°C.
Key features include 150% peak load output for 1 second, and protection against short circuit, over-current, over-voltage, and over-temperature conditions. The dimensions are 220.0mm x 62.0mm x 31.0mm, and it is chassis mountable.
Compliance is met with standards such as CCC, CE, cURus, EN, UKCA, and UL, including safety standards 60335-1 and 62368-1. The high I/O isolation test voltage is up to 4000VAC.
The output power is 350W.
The output voltage is 48V and the output current is 7.32A.
The input voltage range is 85 to 305VAC or 120 to 430VDC.
The efficiency is 94%.
The operating temperature range is -40°C to +85°C.
It meets safety standards 60335-1 and 62368-1.
It includes protection against short circuit, over current, over voltage, and over temperature.
