| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| Standard Number | |
| Type | |
| Voltage |

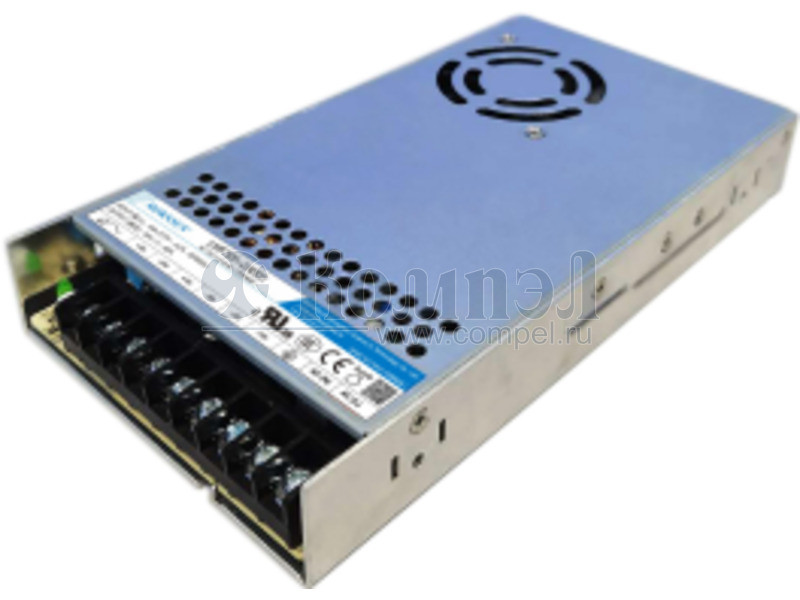

The Mornsun LMF320-23B48-C is an enclosed AC/DC switching power supply designed for versatile applications. It accepts a universal input voltage range of 85-305VAC or 120-430VDC, offering flexibility in power source selection.
This converter provides a nominal output power of 322W with a 48V output voltage and a current rating of 6.7A. Key electrical features include built-in active Power Factor Correction (PFC) and high I/O isolation up to 4000VAC. The efficiency is rated at 89%.
Designed for reliability, the LMF320-23B48-C includes output protections for short circuit, over-current, over-voltage, and over-temperature conditions. It operates within a temperature range of -30°C to +70°C, with derating. Emissions meet CISPR32/EN55032 Class B standards.
The unit is chassis mountable and has dimensions of 215.0mm x 115.0mm x 30.0mm. It is suitable for applications in industrial, LED, street light control, electricity, security, telecommunications, and smart home sectors.
85-305 VAC or 120-430 VDC.
48V.
6.7A.
322W.
-30°C to 70°C (with derating).
Yes, built-in active PFC function.
Short circuit, over current, over voltage, over temperature.
