| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

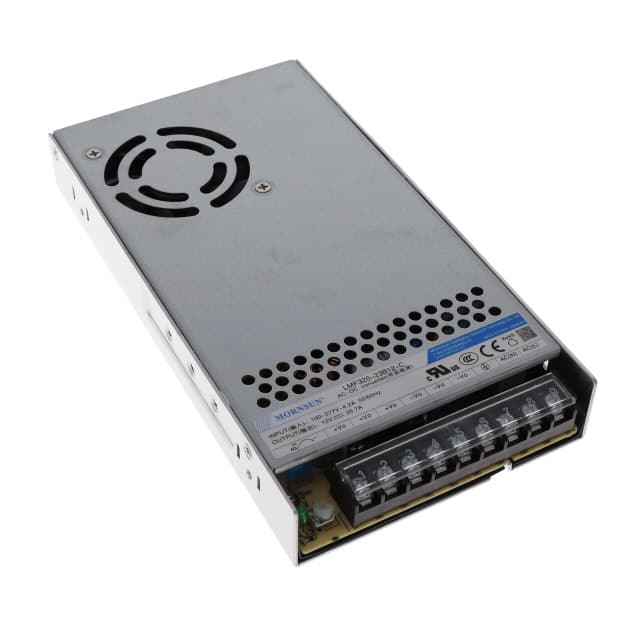

The MORNSUN LMF320-23B12-C is an enclosed AC-DC power module designed for ITE (Commercial) applications. It delivers a continuous output power of 320W with a single 12V output at 26.7A.
Key electrical specifications include a wide input voltage range of 85-305 VAC or 120-430 VDC, an isolation voltage of 4 kV, and an efficiency of 86.5%. The operating temperature range is -30°C to 70°C with derating. This module supports adjustable output, DC input capability, standby output, and universal input.
Designed for chassis mounting, the module has dimensions of 215.0mm x 115.0mm x 30.0mm. It is approved by CB, CCC, CE, cURus, and UL, meeting standard 62368-1.
Features such as adjustable output, DC input capability, and standby output make it a versatile component for various power supply designs.
The output voltage is 12V.
The maximum output current is 26.7A.
The input voltage range is 85 to 305 VAC or 120 to 430 VDC.
The operating temperature range is -30°C to 70°C with derating.
It is chassis mounted.
Features include adjustable output, DC input capability, standby output, and universal input.
