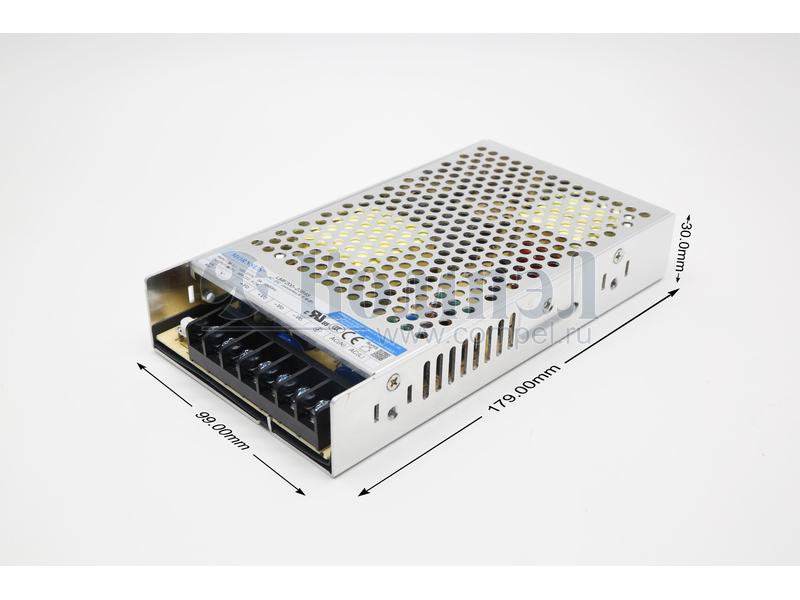

The Mornsun LMF200-23B48-Q is an enclosed AC-DC switching power supply with a conformal coating, designed for reliable power conversion. It delivers 202W of output power at 48V with an efficiency of 89% at 230VAC input.
This converter features a universal input voltage range of 85-305VAC or 120-430VDC, making it suitable for global applications. It includes built-in active Power Factor Correction (PFC) and offers high I/O isolation up to 4000VAC. The operating temperature range is -30°C to +70°C with derating.
Designed for chassis mounting, the LMF200-23B48-Q has dimensions of 179.0mm x 99.0mm x 30.0mm. It meets safety standards such as IEC/EN/UL62368-1 and EN60335, and emissions standards like CISPR32/EN55032 Class B. This power supply is suitable for applications in industrial, LED lighting, electricity, security, telecommunications, and smart home systems.
The input voltage range is 85 to 305 VAC or 120 to 430 VDC.
-30°C to 70°C (with derating).
Enclosed, chassis mount.
48V at 4.2A.
4000VAC.
Yes, it meets CISPR32/EN55032 Class B.
IEC/EN 60335-1 and 62368-1.
