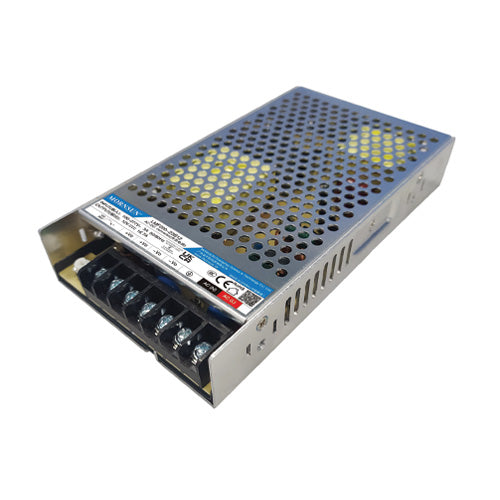

The Mornsun LMF200-23B24 is a 202W enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a universal input voltage range of 85-305 VAC or 120-430 VDC, making it suitable for global applications.
This power supply provides a stable 24VDC output with a maximum current of 8.4A. Key electrical specifications include high efficiency up to 90% at 230 VAC, active PFC function, and comprehensive protection features such as short circuit, over-current, over-voltage, and over-temperature protection. It also offers an adjustable output voltage range of 22.8-25.2V.
Designed for demanding environments, the LMF200-23B24 operates within a temperature range of -30°C to +70°C with derating. Its compact, enclosed chassis mount design facilitates integration into various systems. Safety certifications include IEC/EN/UL62368, EN60335, and GB4943, along with emissions compliance to CISPR32/EN55032 Class B.
Applications for this power supply include industrial automation, LED lighting control, telecommunications, and commercial equipment requiring a robust and efficient power solution.
The LMF200-23B24 provides a nominal output voltage of 24 VDC.
The maximum output current for the LMF200-23B24 is 8.4 A.
The maximum power output is 202 W.
The power supply accepts a universal input voltage range of 85-305 VAC or 120-430 VDC.
The operating temperature range is -30°C to +70°C.
It meets safety standards including IEC/EN/UL62368, EN60335, and GB4943.
Yes, the LMF200-23B24 has a built-in active PFC function.
