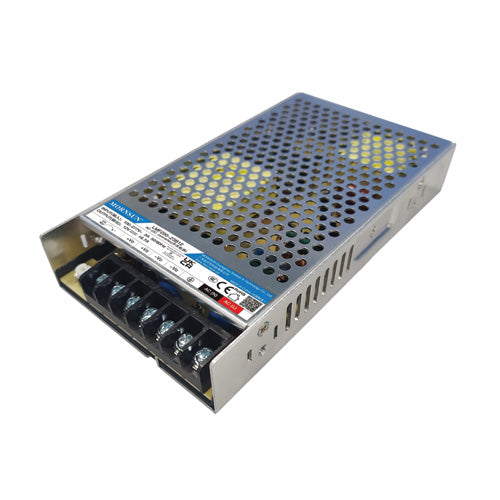

The Morning Star Industrial LMF200-23B12 is a 200W AC/DC power supply designed for enclosed applications. It provides a stable 12Vdc output at a maximum current of 16.7 Amps.
This power supply operates with a wide input voltage range of 85~305Vac, making it suitable for various global power grids. Key electrical specifications include an efficiency of 88% and features such as adjustable output, Power Factor Correction (PFC), remote On/Off control, and universal input capability. The unit is designed for chassis mounting.
With an isolation voltage rating of 4 kV, the LMF200-23B12 is suitable for applications in household appliances and ITE (Commercial) environments. It operates within a temperature range of -30°C to 70°C, with derating. Safety certifications include CCC, CE, cURus, and UL, adhering to standards like IEC/EN 62368-1 and IEC/EN 60335-1.
The output voltage is 12Vdc.
The maximum output current is 16.7 Amps.
The maximum power output is 200 Watts.
The input voltage range is 85~305Vac.
The operating temperature range is -30°C to 70°C (With Derating).
It complies with CCC, CE, cURus, and UL standards, including IEC/EN 60335-1 and IEC/EN 62368-1.
