| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

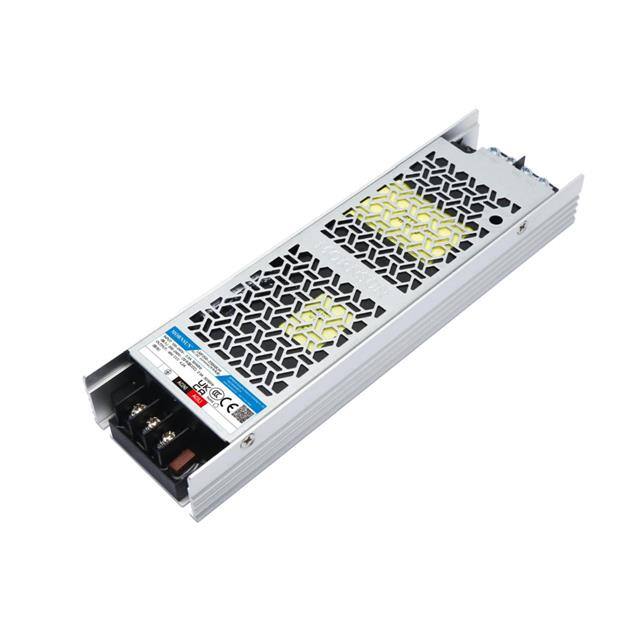

The MORNSUN LMF200-23B05UH is a 200W enclosed AC/DC power supply designed for industrial and outdoor applications. It features a wide input voltage range of 85-305VAC and can also accept DC input from 120-430VDC. This fanless, semi-potted unit provides a stable 5V output at 40A.
Key electrical specifications include a high efficiency of 91% at 230VAC, a power factor of 0.95 at 230VAC, and 4000VAC isolation between input and output. The converter includes comprehensive protection features such as short circuit, over current, over voltage, and over temperature protection. It operates reliably within a wide temperature range of -40°C to +70°C with derating.
Designed for demanding environments, the LMF200-23BxxUH series meets various safety standards including GB4943.1, IEC60335-1, and EN62368-1. Its compact dimensions of 194.0mm x 55.0mm x 26.0mm make it suitable for chassis mounting. This power supply is ideal for applications in industrial control, lighting, security, communications, and smart home systems.
85-305VAC or 120-430VDC.
5VDC at 40A.
-40°C to +70°C.
Short circuit (hiccup mode), over current (105%-200% Io with 1s delay), over voltage (<6.3V), over temperature (shutdown, self-recovery).
Enclosed, chassis mount.
91% typical at 230VAC.
GB4943.1, IS13252(Part1), IEC60335-1, IEC61558-1, EN62368-1, BSEN62638-1, UL62368-1, EN61558-1, EN60335-1.
