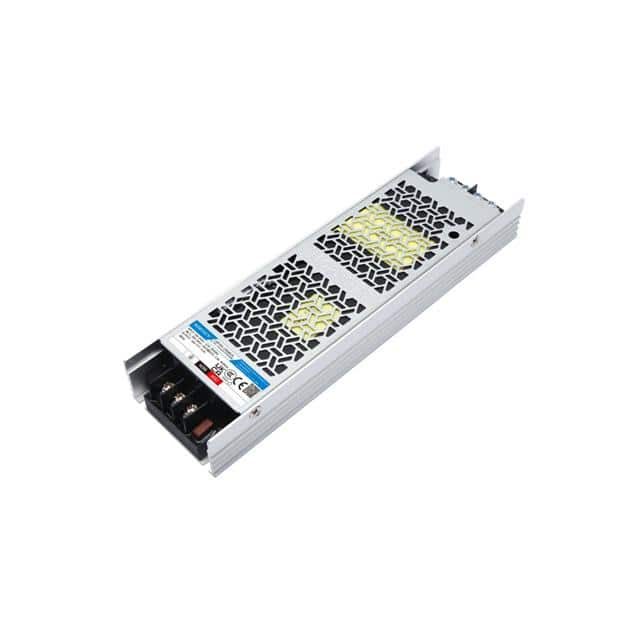

The LMF1500-20B36 from Morning Star Industrial is an enclosed AC DC converter designed for various applications including household appliances, ITE commercial, and medical equipment. It boasts a high efficiency of 94% and a substantial power output of 1522W.
Key electrical features include a 5V output voltage with a 2A current rating, and a universal input voltage range of 85-264 VAC or 120-370 VDC. The converter supports adjustable output, DC input capability, Power Factor Correction (PFC), and remote on/off and sense functions. It operates within a wide temperature range of -40°C to 70°C, with derating.
This unit is designed for chassis mounting and meets several standard safety certifications including CE, UKCA, and UL. Its dimensions are 250.0mm in length, 127.0mm in width, and 40.5mm in height. The RoHS status is listed as RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The output voltage is 5V and the output current is 2A.
The power rating is 1522W.
The operating temperature range is -40°C to 70°C with derating.
It holds CE, UKCA, and UL approvals.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The efficiency is 94%.
The dimensions are 250.0mm x 127.0mm x 40.5mm.
