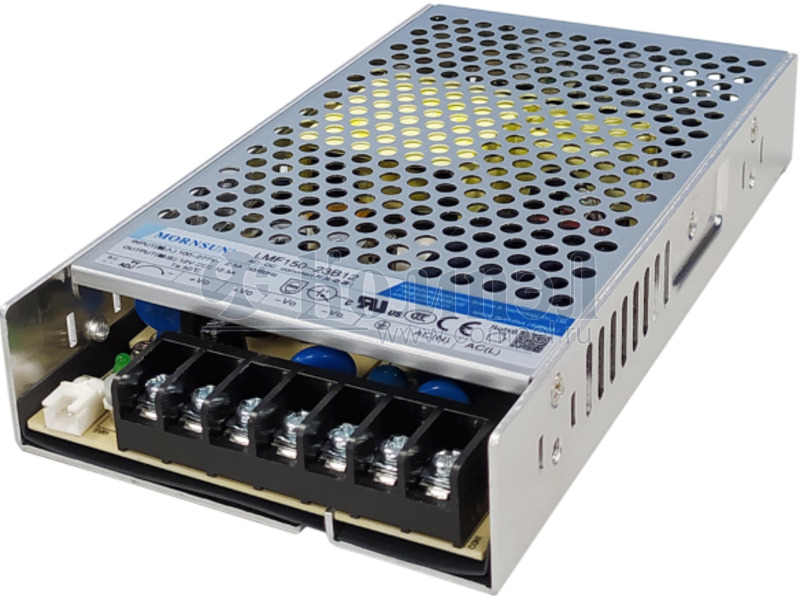

The Mornsun LMF150-23B24-Q is an enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a universal input voltage range of 85 to 305 VAC or 120 to 430 VDC, making it suitable for global applications.
This converter provides a nominal output power of 151W at 24V with a current rating of 6.3A. It boasts an efficiency of 87% and includes a built-in active Power Factor Correction (PFC) function. Key features include high I/O isolation up to 4000VAC, adjustable output, DC input capability, remote ON/OFF control, and comprehensive protection against short circuit, over-current, over-voltage, and over-temperature conditions.
The LMF150-23B24-Q is built with a chassis mount design and has dimensions of 179.0mm x 99.0mm x 30.0mm. It operates within a temperature range of -30°C to +70°C with derating. The unit is approved by CB, CCC, CE, cURus, and UL, and complies with standards such as IEC/EN62368-1 and IEC/EN60335-1. It is suitable for applications in ITE (Commercial) and household appliances.
The LMF150-23B24-Q accepts 85-305 VAC or 120-430 VDC input.
It provides a single 24V output at 6.3A, with nominal output power of 151W.
The operating temperature range is -30°C to 70°C with derating.
Protection includes short circuit, over current (constant current limiting), over voltage, and over temperature.
It has CB, CCC, CE, cURus, and UL approvals, compliant with 60335-1 and 62368-1 standards.
Isolation voltage between input and output is 4000 VAC.
It is an enclosed conformal coated chassis mount module measuring 179mm x 99mm x 30mm.
