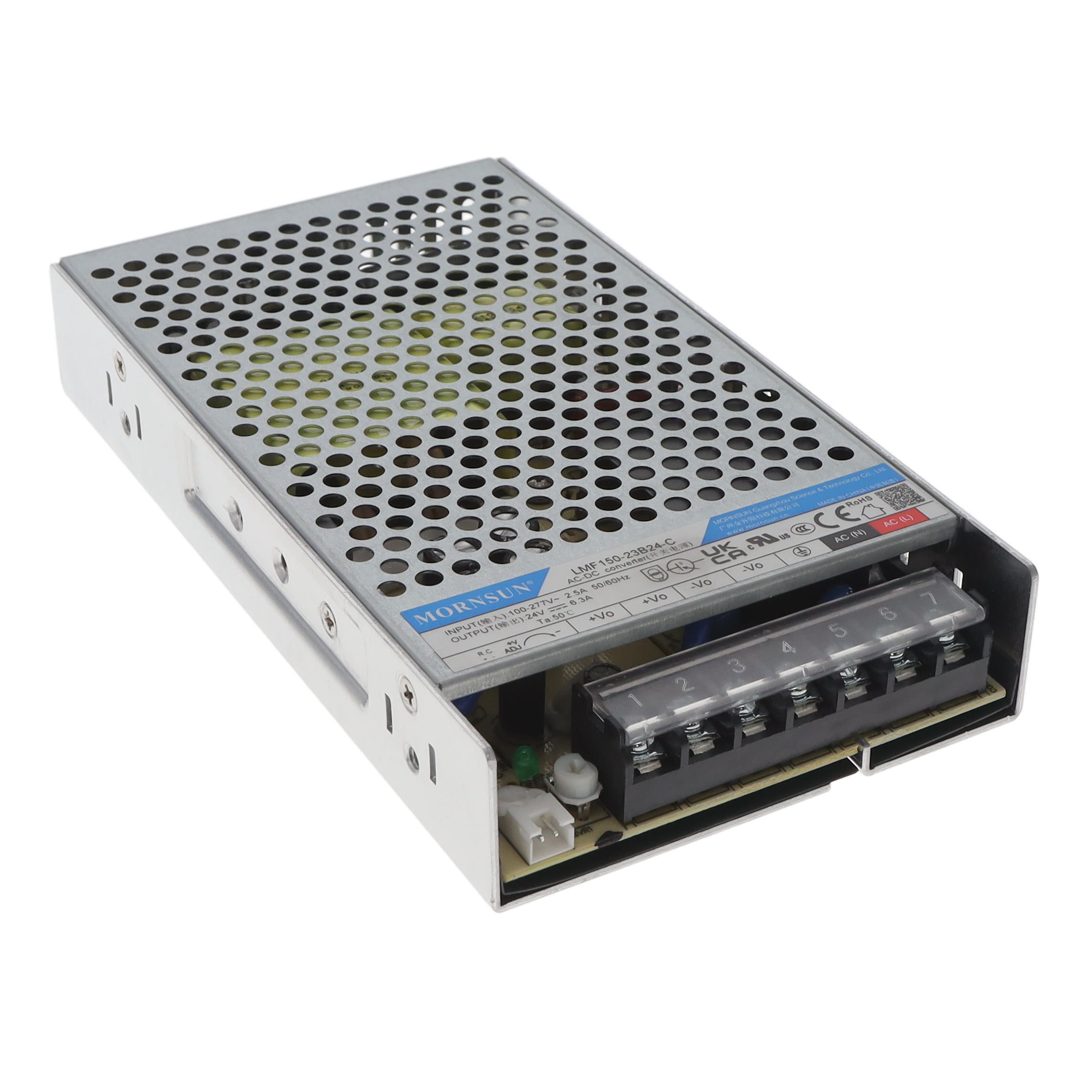

The Mornsun LMF150-23B24-C is a versatile enclosed AC/DC converter designed for a wide range of applications, including household appliances and ITE (Commercial) equipment. It offers a robust 24V output with a maximum current of 6.3A and a power rating of 151W.
This converter supports a wide input voltage range of 85-305 VAC and 120-430 VDC, making it suitable for global use. Key features include adjustable output, DC input capability, remote on/off functionality, and universal input. The unit boasts an efficiency of 87% and provides 4 kV of isolation voltage.
Designed for practical integration, the LMF150-23B24-C features a chassis mount type and has dimensions of 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm). It operates within a temperature range of -30°C to 70°C with derating. The converter is certified by CB, CCC, CE, cURus, and UL, adhering to standards such as 60335-1 and 62368-1.
-30°C to 70°C with derating.
85 to 305 VAC or 120 to 430 VDC.
24V output at 6.3A, 151W.
4kV.
87%.
CB, CCC, CE, cURus, UL.
The product is packaged in a box.
