| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

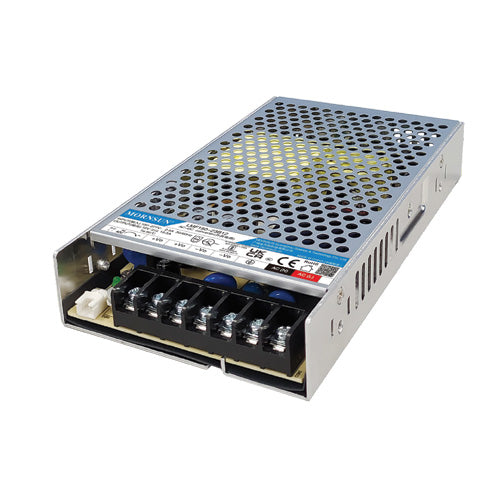

The Mornsun LMF150-23B15 is an enclosed AC/DC power supply designed for industrial and commercial applications. It provides a stable 15V DC output with a maximum current of 10A, delivering up to 150W of power.
Key electrical specifications include a wide input voltage range of 85~305Vac, an efficiency of 86%, and features such as adjustable output, power factor correction (PFC), and remote On/Off control. The unit is designed for chassis mounting and has dimensions of 179.0mm x 99.0mm x 30.0mm.
This power supply operates within a temperature range of -30°C to 70°C with derating and meets safety standards including IEC/EN 62368-1 and UL 62368-1. It is suitable for applications in household appliances and ITE (Commercial) equipment.
The input voltage range is 85~305Vac.
The output voltage is 15Vdc and the maximum output current is 10A.
The maximum power is 150W.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 86%.
The isolation voltage is 4kV.
The dimensions are 179.0mm (length) x 99.0mm (width) x 30.0mm (height).
