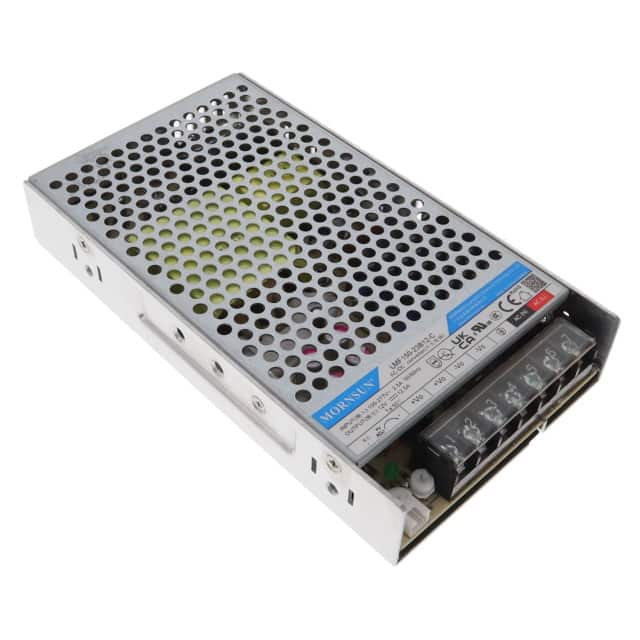

The Morning Star Industrial LMF150-23B12-C is an enclosed AC/DC converter designed for demanding commercial and household appliance applications. It delivers a regulated 12V output at 12.5A for a total power of 150W, achieving an efficiency of 85.5%.
Key electrical specifications include a 4kV isolation voltage, adjustable output capability, and support for DC input and remote on/off control. The converter is rated for universal input and features an operating temperature range from -30°C to 70°C with derating.
Mechanically, the unit is designed for chassis mount with compact dimensions of 179.0mm x 99.0mm x 30.0mm. It is packaged in a box and carries safety approvals from CB, CCC, CE, cURus, and UL, compliant with standards 60335-1 and 62368-1.
The operating temperature range is -30°C to 70°C with derating.
The converter is packaged in a box.
The output voltage is 12V and the output current is 12.5A, providing 150W of power.
The isolation voltage is 4 kV.
The efficiency is 85.5%.
It is approved by CB, CCC, CE, cURus, and UL, compliant with standards 60335-1 and 62368-1.
