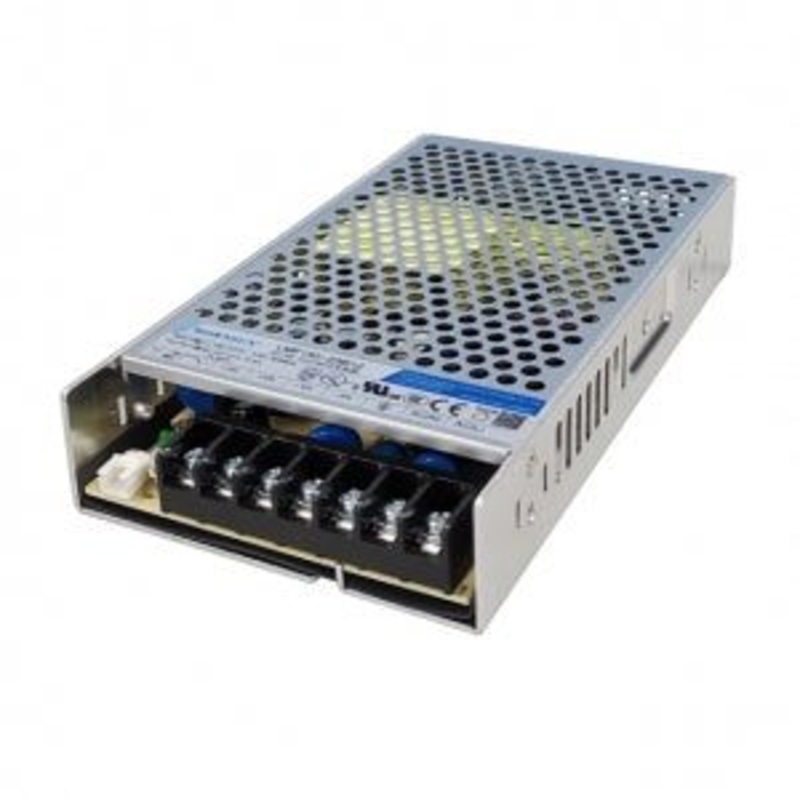

The Mornsun LMF150-23B12 is an enclosed AC/DC switching power supply designed for various applications. It delivers a robust 150W of power with a stable 12V output voltage and a maximum current of 12.5A. The unit operates within a wide input voltage range of 85 to 305VAC, ensuring compatibility with diverse power sources.
Key electrical specifications include an efficiency rating of 85.5% and an isolation voltage of 4000VAC. The power supply is protected against overvoltage, overcurrent, and short circuits, enhancing safety and reliability. Its enclosed design provides protection from dust and moisture.
With dimensions of 179.0mm x 99.0mm x 30.0mm, this power supply is suitable for chassis mounting. It operates within a temperature range of -30°C to 70°C with derating. The LMF150-23B12 is compliant with standards such as 60335-1 and 62368-1.
The output power is 150W.
The output voltage is 12V.
The maximum output current is 12.5A.
The input voltage range is 85 to 305VAC.
The efficiency is 85.5%.
The operating temperature range is -30°C to 70°C (With Derating).
It complies with standards 60335-1 and 62368-1.
