| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

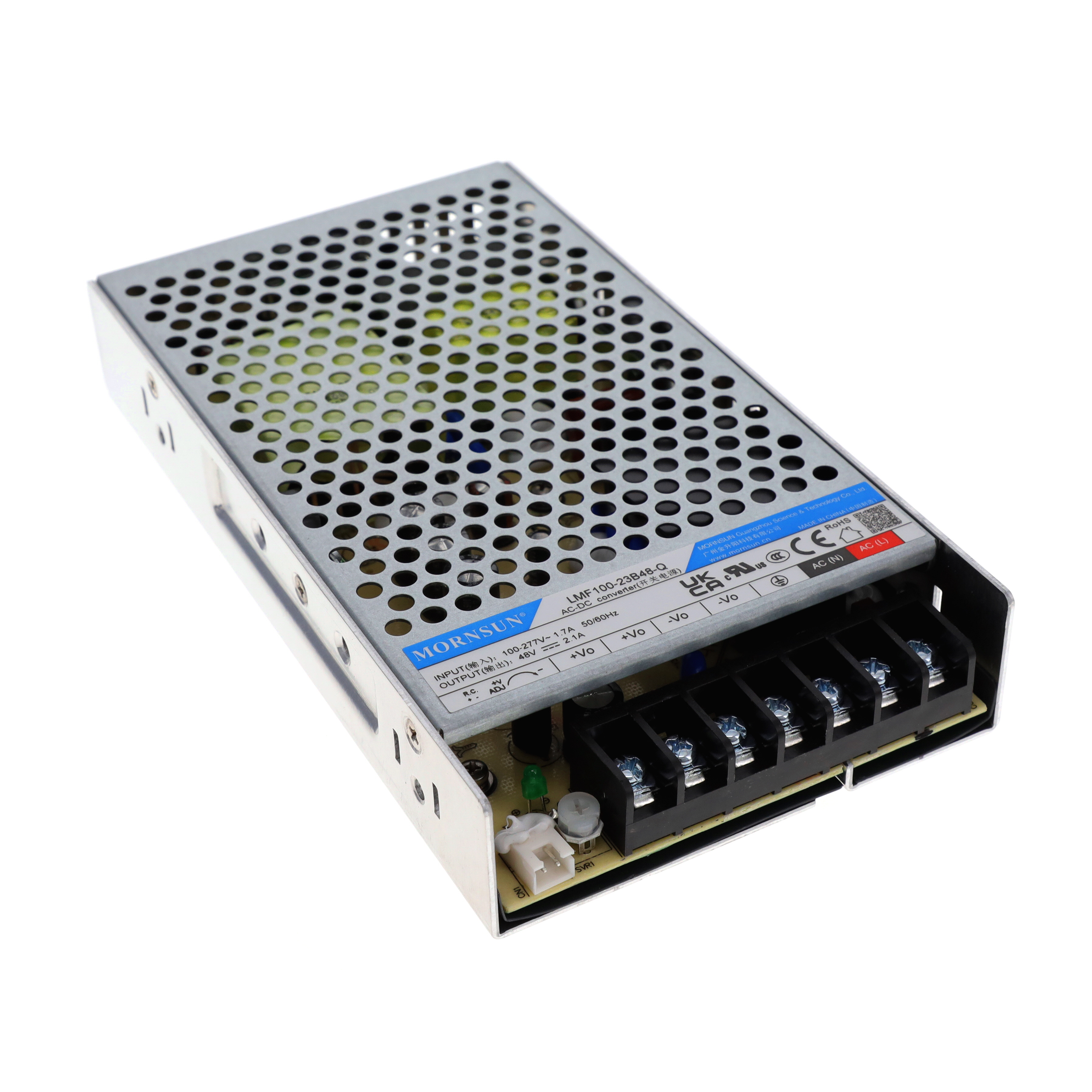

This AC/DC converter from Mornsun America, LLC, model LMF100-23B48-Q, provides 101W of power with a single 48V output at 2.1A. It operates with an input voltage range of 85-305 VAC or 120-430 VDC and boasts an efficiency of 87%.
Key features include PFC and remote On/Off functionality, making it suitable for various applications. The converter is enclosed with conformal coating and designed for chassis mounting. Its dimensions are 179.0mm x 99.0mm x 30.0mm.
Operating temperatures range from -30°C to 70°C with derating. The unit is approved by CB, CCC, CE, cURus, and UL, and complies with standard numbers 60335-1 and 62368-1. Applications include household appliances and ITE (Commercial) equipment.
It offers 4kV of isolation voltage and features a conformal coating for added protection. The RoHS, REACH, and MSL status are listed as compliant, unaffected, and level 1 respectively, though with low confidence.
-30°C to 70°C with derating.
Enclosed, conformal coated, chassis mount, supplied in a box.
85-305 VAC or 120-430 VDC.
48V at 2.1A, 101W.
87% typical.
4000V.
179.0mm x 99.0mm x 30.0mm.
