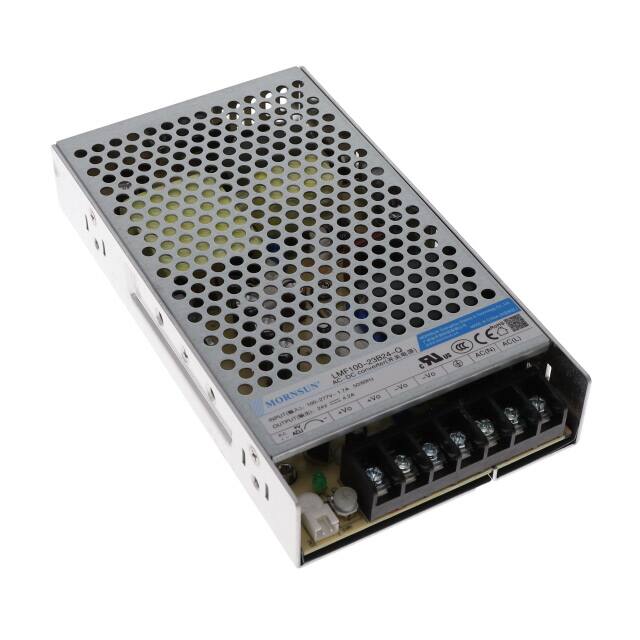

This AC/DC converter from Morning Star Industrial, part number LMF100-23B24-Q, is designed for robust power supply applications. It offers a power output of 101W and an adjustable output voltage, with a nominal output of 24V and a current rating of 4.2A.
The unit is enclosed and conformal coated, suitable for demanding environments. It supports DC input capability and features remote on/off functionality, along with universal input voltage compatibility. The converter operates efficiently at 86% and is designed for chassis mounting.
Key specifications include an isolation voltage of 4 kV and an operating temperature range of -30°C to 70°C with derating. It meets standard numbers 60335-1 and 62368-1, and is approved by agencies such as CB, CCC, CE, cURus, and UL.
Dimensions are 179.0mm in length, 99.0mm in width, and 30.0mm in height. Applications include household appliances and ITE (Commercial) equipment.
101W at 24V.
86%.
4 kV.
-30°C to 70°C with derating.
CB,CCC,CE,cURus,UL.
Chassis mount.
4.2A.
