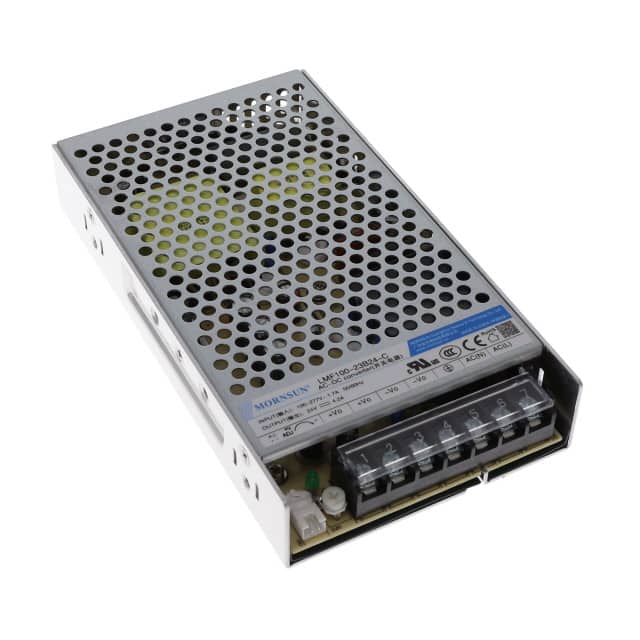

The Mornsun LMF100-23B24-C is an enclosed AC/DC switching power supply designed for various applications. It offers a universal input voltage range of 85-305V AC or 120-430V DC, making it versatile for global use. This power supply delivers a nominal output power of 101W with a single 24V output channel capable of supplying up to 4.2A.
Key electrical specifications include an efficiency of 86% and an input-to-output isolation voltage of 4000 VAC. The unit is equipped with protection features such as short circuit, over-current, over-voltage, and over-temperature protection. It also includes features like adjustable output, DC input capability, remote ON/OFF control, and built-in active PFC.
Mechanically, the LMF100-23B24-C has a chassis mount design with dimensions of 179.0mm x 99.0mm x 30.0mm. It operates within a temperature range of -30°C to +70°C, with derating. Safety standards include IEC/EN60335-1 and IEC/EN62368-1, with approval agencies such as CB, CCC, CE, cURus, and UL.
This power supply is suitable for applications in ITE (Commercial) and Household Appliances. It meets CISPR32/EN55032 Class B emissions standards without additional components.
The output power is 101W.
The output voltage is 24V.
The input voltage range is 85-305V AC or 120-430V DC.
The operating temperature range is -30°C to +70°C.
The dimensions are 179.0mm x 99.0mm x 30.0mm.
Yes, it has a built-in active PFC function.
It complies with IEC/EN60335-1 and IEC/EN62368-1.
