| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Control Interface | |
| Current | |
| Function | |
| Industrial Grade | |
| Interface | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |

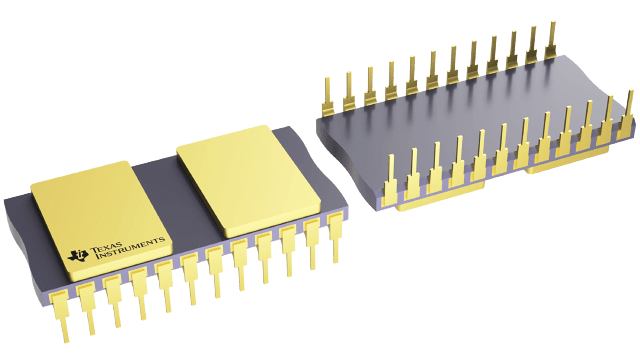

The LMD18200-2D/883 from Texas Instruments is an integrated H-Bridge motor driver capable of delivering up to 3A continuous output current and handling supply voltages up to 55V. This device is built using a multi-technology process combining bipolar and CMOS control circuitry with DMOS power devices.
Key electrical specifications include a typical RDS(ON) of 0.33Ω per switch at 3A, PWM control interface, and TTL/CMOS compatible inputs. It offers features such as current sense, internal clamp diodes, shorted load protection, and an internal charge pump with external bootstrap capability.
Designed for motion control, this H-Bridge is ideal for driving DC and stepper motors. It operates within a temperature range of -55°C to 125°C (TJ). The component is housed in a 24-CDIP SB package and utilizes through-hole mounting.
Additional features include a thermal warning flag output at 145°C and thermal shutdown at 170°C, along with no "shoot-through" current protection, enhancing its reliability in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $264.76 | $264.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LMD18200-2D/883 delivers up to 3A continuous output current.
The LMD18200-2D/883 operates at supply voltages up to 55V.
The typical on-resistance for each switch is 0.33Ω at 3A.
The operating temperature range is -55°C to 125°C (TJ).
The LMD18200-2D/883 is mounted using the through-hole method.
Yes, it features a thermal warning flag output at 145°C and thermal shutdown (outputs off) at 170°C.
