| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Package / Case | |
| Supplier Device Package | |
| Type |
The LMC7221BIM5X is a general-purpose comparator manufactured by Texas Instruments. This component is designed for a wide range of applications, operating reliably within a temperature range of -40°C to 85°C. It features a supply voltage range of 2.7V to 15V, making it versatile for various circuit designs.

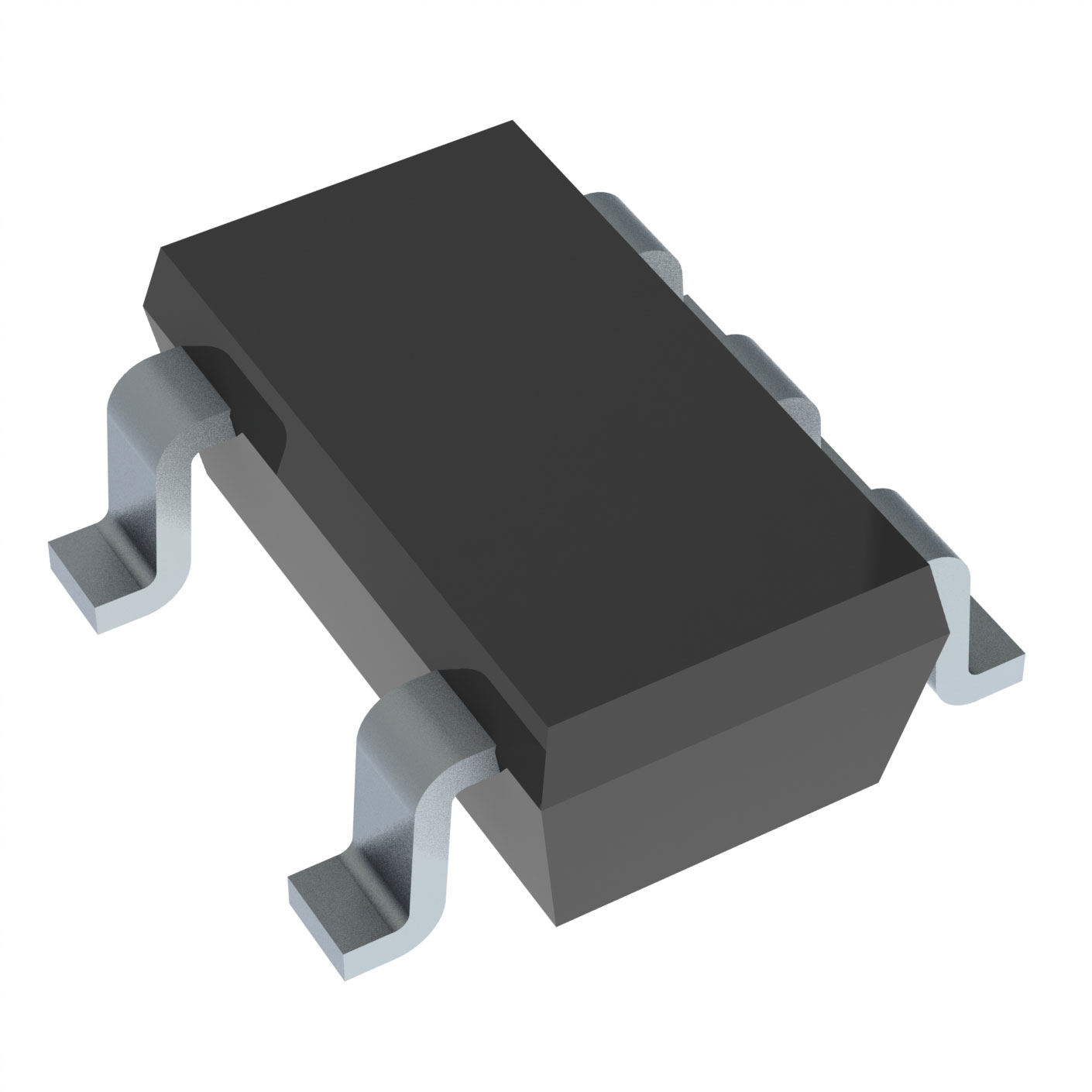

The comparator is housed in a compact SOT-23-5 package, suitable for surface mount applications where space is a constraint. Key electrical characteristics include a low quiescent current of 14µA and an output current capability of 30mA. The input offset voltage is a maximum of 15mV at 5V, with a very low input bias current of 0.04pA at 5V.
With a common-mode rejection ratio of 75dB and power supply rejection ratio of 80dB, the LMC7221BIM5X offers good signal integrity. The maximum propagation delay is 10µs, and it features an open-drain output type. The part status is listed as 'Not For New Designs', suggesting it may be superseded by newer components.
2.7V to 15V (single supply) or ±1.35V to ±7.5V (dual supply).
The device is available in SC-74A, SOT-753 package and the supplier device package is SOT-23-5.
-40°C to 85°C.
Open-drain.
10µs.
15mV at 5V.
0.04pA at 5V.
